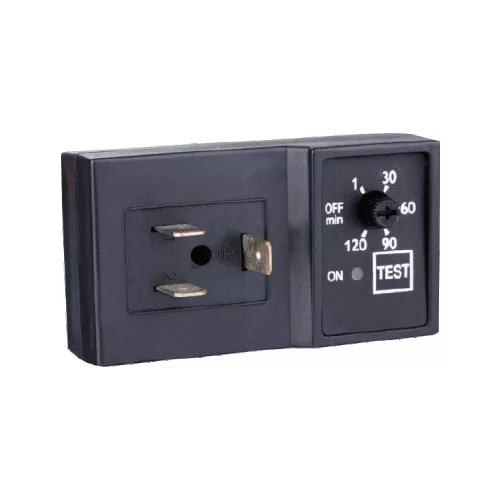

XY-11 Timer
XY-11 Timer
Share:
Inquire Now
Next Product
Specification
Product Details
Supply voltage
24..240V AC/DC-50Hz/60Hz for "CE" marked timer
Duty cycle
100%ED
Absorption current
4mA Max
Switch life
3x10
8
Operating temperature
-10℃~+50℃
Time ON
from 2s
Class protection
IP65-EN60529
Time OFF
from 0.5 to 120 min
Switch holding voltage
400V Max
Indicators
Red LED
Switch capacity
1A
Manual override
Test
Inrush current
10A for 10ms
Termination
DIN43650B

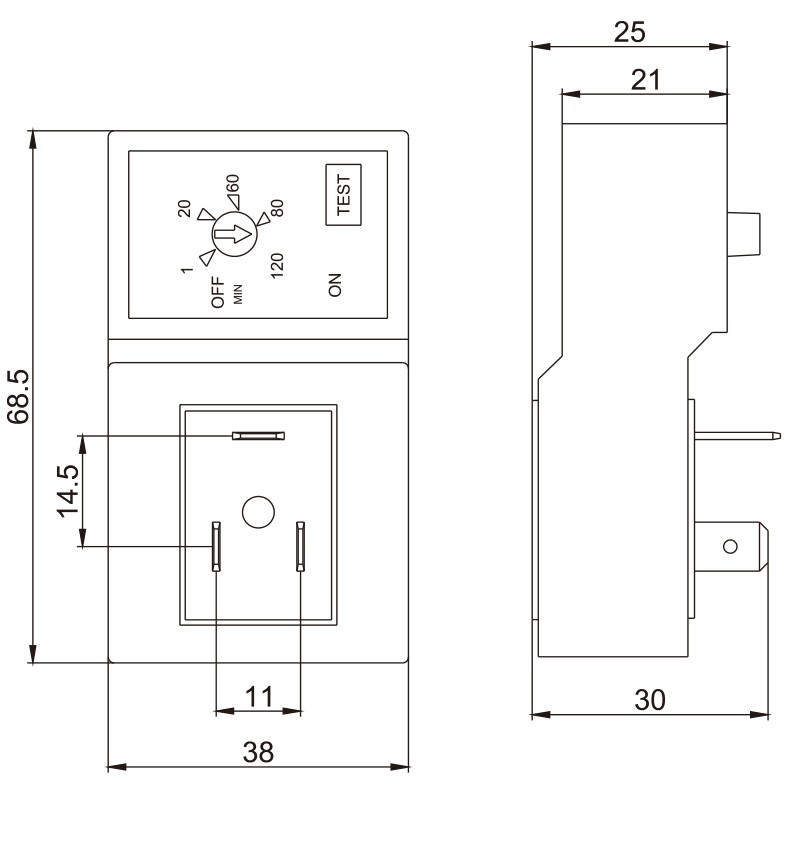

Overall Dimension
