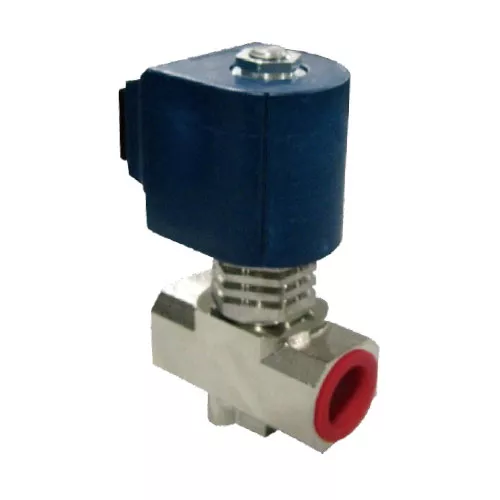

RV08102 Steam Valve

  • High Temperature Resilience: Our valve operates flawlessly in high-temperature steam environments, maintaining optimal performance without compromise.

  • User-Friendly Operation: Whether you prefer manual control or automated actuation (pneumatic, hydraulic, or electric), our valve is designed for ease of use and flexibility.

  • Customizable Connectivity Options: We offer flanged, threaded, or welded connectivity, ensuring seamless integration with your existing piping systems.

  • Low Maintenance Needs: Our steam valve is designed for minimal maintenance, saving you time and resources while maintaining peak efficiency.

  • Safety First Design: With built-in pressure relief features, our valve prioritizes safety, preventing over-pressurization and potential hazards.



Steam Valve Catalog

Parameter

ModelRV08102 Steam valve
MediaSteam
PatternNormally close
Orifice8mm
Connection portG1/2"
Working pressure0-1.0Mpa
Max.pressure2.5Mpa
Working temp.0℃~180℃
Related voltageAC220V +/-10%
Power19VA
Insulation classH Class
Protection classIP65
Valve body MaterialBrass
Seal materialPTFE/VITON

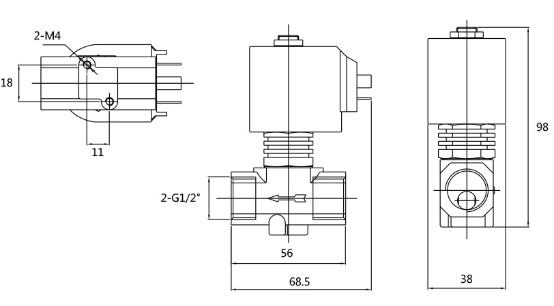

Overall Dimension
