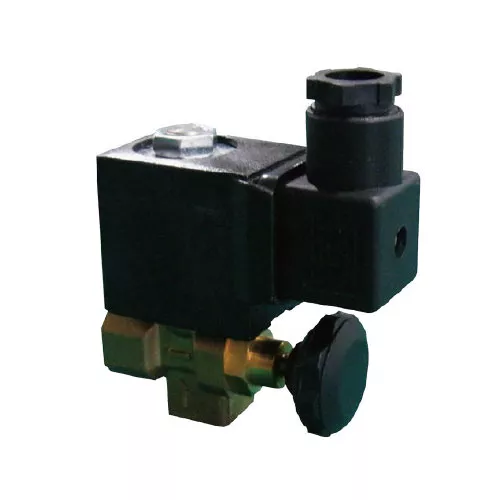

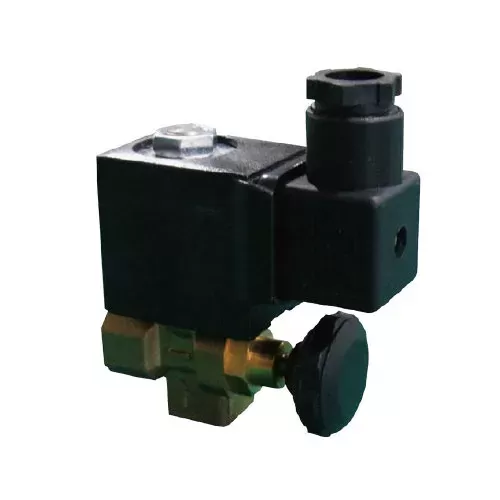

DL-6K

  • High Temperature Resilience: Our valve operates flawlessly in high-temperature steam environments, maintaining optimal performance without compromise.

  • User-Friendly Operation: Whether you prefer manual control or automated actuation (pneumatic, hydraulic, or electric), our valve is designed for ease of use and flexibility.

  • Customizable Connectivity Options: We offer flanged, threaded, or welded connectivity, ensuring seamless integration with your existing piping systems.

  • Low Maintenance Needs: Our steam valve is designed for minimal maintenance, saving you time and resources while maintaining peak efficiency.

  • Safety First Design: With built-in pressure relief features, our valve prioritizes safety, preventing over-pressurization and potential hazards.



Steam Valve Catalog

Parameter



ModelDL-6K
MediaWater/Steam/Clean Air
Working type2/2 Direct action
PatternNormally close
Orifice2.5mm
Connection portG1/4"
Working pressure0-0.8Mpa
Max.pressure2.5Mpa
Working temp.0.1℃~180℃
Related voltage24~240V DC/AC +/-10%
PowerAC15VA/DC12W
Insulation classH Class
Protection classIP65
Valve Body materialBrass
Seal materialPTFE/FKM

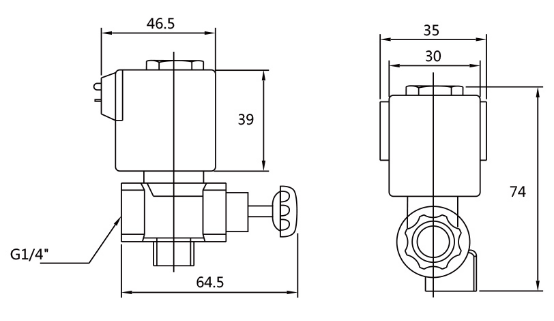

Overall Dimension
