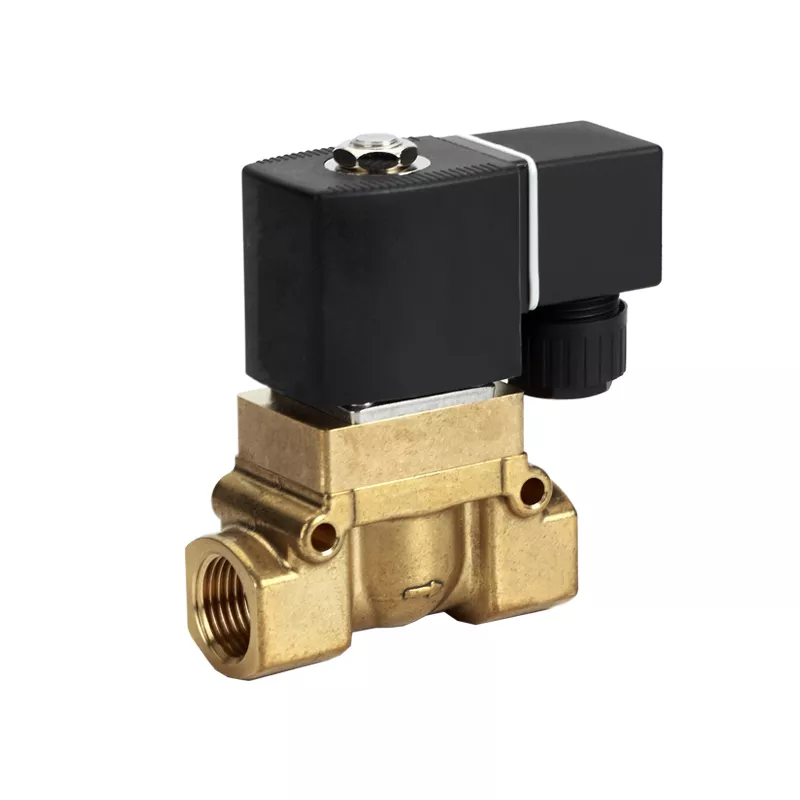

SB116 Valve
SB116 Valve
Pressure Handling: Two-way valves are designed to handle specific pressure ranges. It's important to select a valve that can withstand the operating pressure of the system.
Flow Control: They are used for on/off control but can also be used for basic throttling of flow. Some two-way valves are designed to control flow rate.
Applications: These valves are used in a wide range of applications including HVAC systems, water supply, industrial process control, and irrigation systems.
Sealing Mechanisms: The sealing of the valve is crucial for preventing leaks. Common sealing materials include PTFE (Teflon), EPDM, and NBR, chosen based on compatibility with the fluid.
Connection Types: Connection types can vary, including threaded, flanged, or compression fittings, depending on the system requirements.
Maintenance and Durability: Generally, two-way valves are low-maintenance and have a long service life, but this can vary based on the type of valve and application.
SB116 Solenoid Valve Datesheet
Pressure Handling:
High-pressure solenoid valves are specifically engineered to handle high-pressure conditions.They must be selected based on their ability to withstand the maximum operating pressure of the system they are installed in.
Flow Control:
Primarily used for on/off control, these valves can quickly open or close to stop or start the flow of fluids or gases.Some high-pressure solenoid valves are designed to provide basic throttling capability, allowing for the modulation of flow rates within a specified range.
HVAC Systems: Controlling refrigerants and other fluids under high pressure.
Water Supply: Regulating high-pressure water flow in municipal and industrial water systems.
Industrial Process Control: Ensuring precise control in manufacturing and processing plants.
Irrigation Systems: Managing water distribution under pressure in agricultural settings.
Generally, high-pressure solenoid valves are designed for low maintenance and long service life. Durability can vary based on the specific valve design and the operating environment, with regular inspections and timely maintenance helping to extend their lifespan.These features highlight the importance of selecting the right high-pressure solenoid valve for specific applications, ensuring safe and efficient operation under demanding conditions.
Product Details
| Model | SB116(SS)-5 |
| Working Pressure | 0.1~4.0MPa |
| Ambient Temp. | -10~+55℃ |
| Medium Temp. | -10~+90℃ |
| Power Consumption | 20AC(VA) / 13DC(W) |
| Seal Material | NBR / PTFE |
| Working Medium | Air / Water / Gas |
| Available Accessories | Timer / Connector / Ex-proof coil |
| Working Type | Pilot Type |
| Pattern | Normally Closed / Normally Open |
| Body Material | Brass / Stainless steel |
| Model | Orifice (mm) | Kv Value (m³/h) | Connection ports |
| SB116-51308 | 13 | 2.52 | 1/4" |
| SB116-51310 | 13 | 2.52 | 3/8" |
| SB116-51315 | 13 | 2.52 | 1/2" |
| SB116-52520 | 25 | 5.0 | 3/4" |
| SB116-52525 | 25 | 8.5 | 1" |

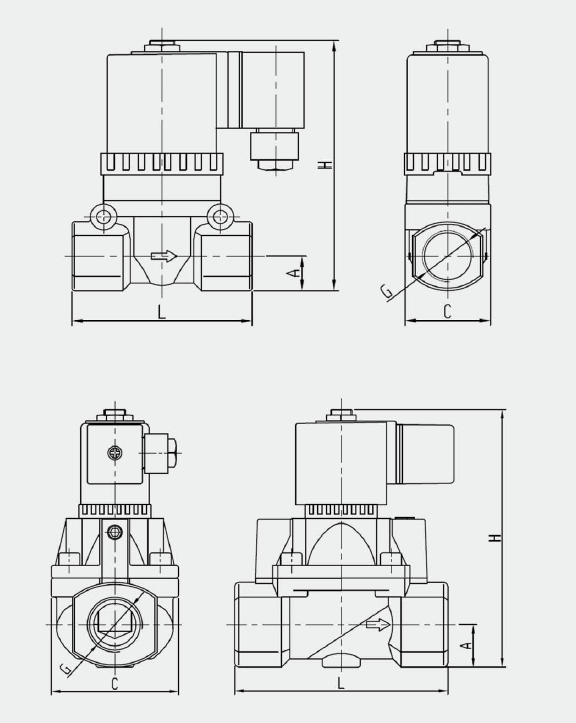

Overall Dimension
| Model | G | L | A | B | K |
| SB116-51308 | 1/4" | 72 | 13 | 98 | 33.5 |
| SB116-51310 | 3/8" | 72 | 13 | 98 | 33.5 |
| SB116-51315 | 1/2" | 72 | 13 | 98 | 33.5 |
| SB116-52520 | 3/4" | 100 | 20 | 120 | 20 |
| SB116-52525 | 1" | 100 | 20 | 120 | 20 |
