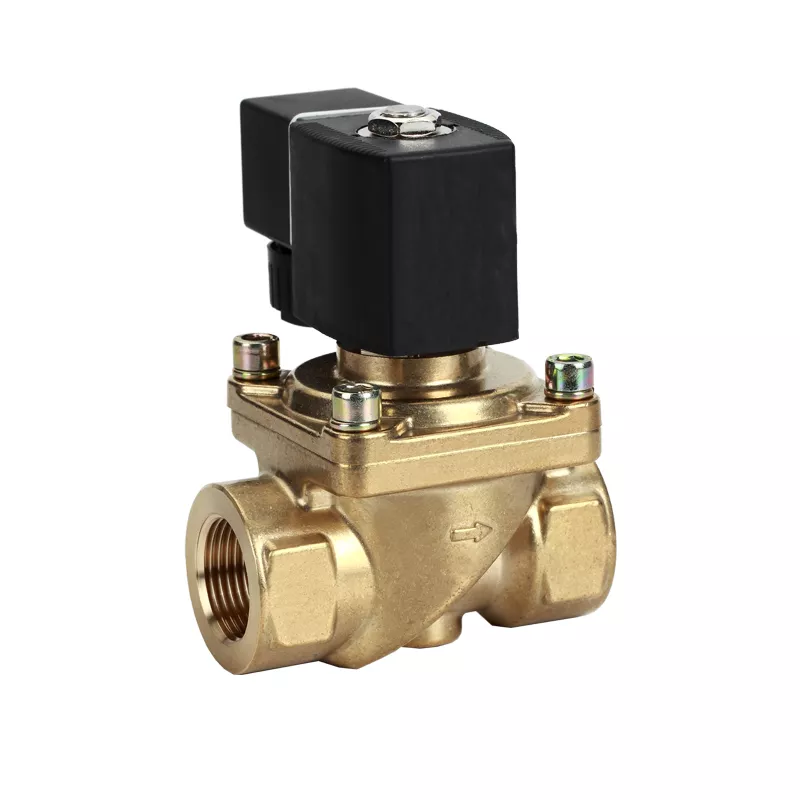

SB116 Valve
SB116 Valve
Pressure Handling: Two-way valves are designed to handle specific pressure ranges. It's important to select a valve that can withstand the operating pressure of the system.
Flow Control: They are used for on/off control but can also be used for basic throttling of flow. Some two-way valves are designed to control flow rate.
Applications: These valves are used in a wide range of applications including HVAC systems, water supply, industrial process control, and irrigation systems.
Sealing Mechanisms: The sealing of the valve is crucial for preventing leaks. Common sealing materials include PTFE (Teflon), EPDM, and NBR, chosen based on compatibility with the fluid.
Connection Types: Connection types can vary, including threaded, flanged, or compression fittings, depending on the system requirements.
Maintenance and Durability: Generally, two-way valves are low-maintenance and have a long service life, but this can vary based on the type of valve and application.
SB116 Solenoid Valve Datesheet
Product Details
| Model | SB116(SS)-2B |
| Ambient Temp. | -10~+55℃ |
| Medium Temp. | -10~+90℃ |
| Power Consumption | AC (20VA) / DC (13W) |
| Seal Material | NBR / PTFE |
| Working Medium | Air / Water / Gas |
| Available Accessories | Timer / Connector / Ex-proof coil |
| Working Type | Pilot Type |
| Pattern | Normally Closed / Normally Open |
| Body Material | Brass / Stainless steel |
| Model | Orifice (mm) | Working Pressure (MPa) | Kv Value (m³/h) | Connection ports |
| SB116-2B1008 | 10 | 0.02-1 | 1.4 | 1/4" |
| SB116-2B1010 | 10 | 0.02-1 | 1.4 | 3/8" |
| SB116-2B1015 | 10 | 0.02-1 | 1.4 | 1/2" |
| SB116-2B1415 | 14 | 0.02-1 | 2.52 | 1/2" |
| SB116-2B1420 | 14 | 0.02-1.6 | 2.52 | 3/4" |
| SB116-2B2020 | 20 | 0.02-1.6 | 5 | 3/4" |
| SB116-2B2025 | 20 | 0.02-1.6 | 5 | 1" |
| SB116-2B4035 | 40 | 0.025-1.6 | 18 | 1-1/4" |
| SB116-2B4040 | 40 | 0.025-1.6 | 18 | 1-1/2" |
| SB116-2B5050 | 50 | 0.025-1.6 | 28 | 2" |
In the pursuit of efficient and reliable industrial automation solutions, solenoid valves are your ideal choice. This series of solenoid valves is designed to meet the harsh industrial environment. It has excellent performance and long service life. It can be widely used in many fields such as chemical, petroleum, water treatment, pharmaceutical, etc., to ensure that your production line is always in the best condition.
High reliability: The use of high-quality materials and advanced manufacturing processes ensures the long-term stability and reliability of the product.
Fast response: With fast switching speed, it can effectively improve the response time and work efficiency of the system.
Diverse interfaces: Provide a variety of interface types, which is convenient for connection with different pipeline systems to meet the needs of different applications.
Easy to install and maintain: The compact design and simple operation make installation and maintenance simple and fast.
Wide applicability: Suitable for a variety of media such as gas and liquid, covering various working conditions from low pressure to high pressure.
Environmental protection and energy saving: Low energy consumption design helps to reduce energy consumption and meets the requirements of green environmental protection.
Solenoid Valve is widely used in the following fields due to its excellent performance and flexibility:
Fluid control in chemical production
Filtration and purification process in water treatment facilities
Cleaning and disinfection in the pharmaceutical industry
Pressure regulation in the oil and gas transportation process

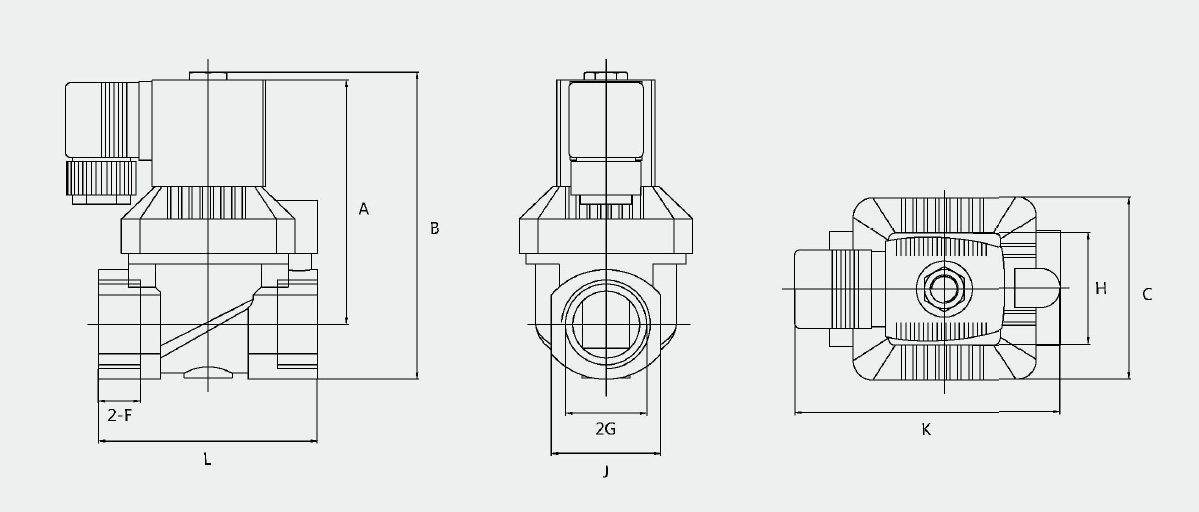

Overall Dimension
| Model | G | C | F | L | J | A | B | H | K |
| SB116-2B1008 | 1/4" | 38 | 15 | 50 | 27 | 72.5 | 85 | 36 | 76 |
| SB116-2B1010 | 3/8" | 38 | 15 | 50 | 27 | 72.5 | 85 | 36 | 76 |
| SB116-2B1015 | 1/2" | 38 | 15 | 50 | 27 | 72.5 | 85 | 36 | 76 |
| SB116-2B1415 | 1/2" | 44 | 16 | 67 | 27 | 78.5 | 92 | 36 | 76 |
| SB116-2B1420 | 3/4" | 44 | 16 | 58 | 32 | 79 | 95 | 36 | 76 |
| SB116-2B2020 | 3/4" | 66 | 18 | 83 | 40 | 100 | 120 | 36 | 76 |
| SB116-2B2025 | 1" | 66 | 18 | 83 | 40 | 100 | 120 | 36 | 76 |
| SB116-2B4035 | 1-1/4" | 92 | 25 | 135 | 57 | 109.5 | 138 | 36 | 76 |
| SB116-2B4040 | 1-1/2" | 92 | 25 | 135 | 57 | 109.5 | 138 | 36 | 76 |
| SB116-2B5050 | 2" | 109 | 28 | 160 | 68 | 122 | 156 | 36 | 76 |
