Right Angle Pulse Jet Valve

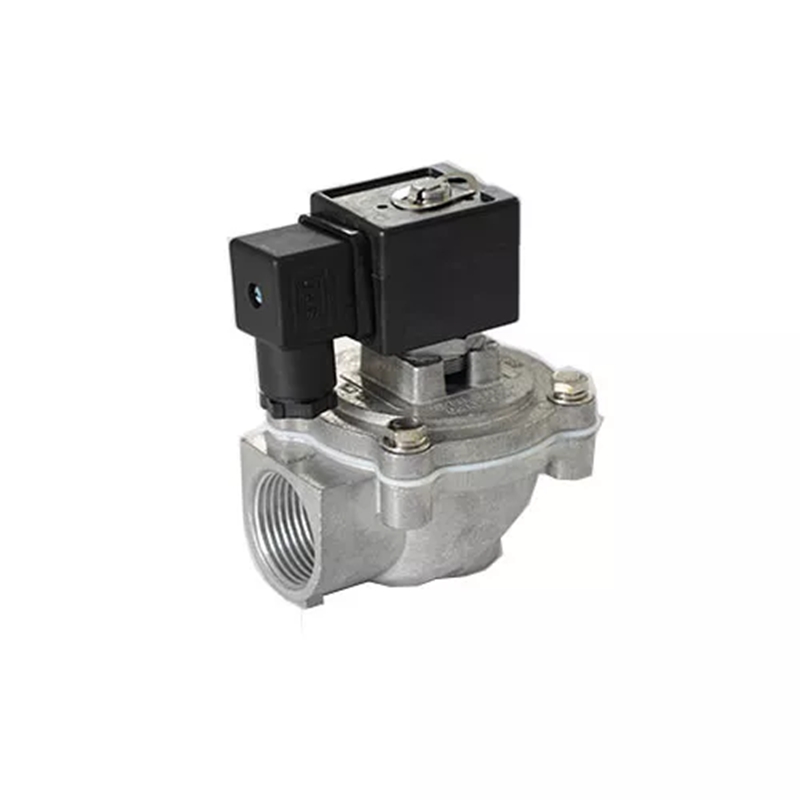

Right Angle Pulse Jet Valve
Exceptional Durability: Constructed with premium materials, our pulse valve is built to last, ensuring long-term reliability and reducing the need for frequent replacements.
High-Performance Diaphragm: The valve features a specially designed diaphragm that ensures quick and effective opening and closing, providing efficient pulse cleaning.
Energy Efficient Operation: Our pulse valve is engineered to consume less air energy while delivering powerful cleaning pulses, making it a cost-effective solution for your systems.
Wide Range of Applications: Ideal for various dust collector systems, our valve can be used in industries like cement production, pharmaceuticals, woodworking, metalworking, and more.
Easy Installation and Maintenance: The valve's design allows for quick and hassle-free installation, and its minimal maintenance requirements ensure uninterrupted operation.
Dust Collect Valve Catalog
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Exceptional Durability: Constructed with premium materials, our pulse valve is built to last, ensuring long-term reliability and reducing the need for frequent replacements.
High-Performance Diaphragm: The valve features a specially designed diaphragm that ensures quick and effective opening and closing, providing efficient pulse cleaning.
Energy Efficient Operation: Our pulse valve is engineered to consume less air energy while delivering powerful cleaning pulses, making it a cost-effective solution for your systems.
Wide Range of Applications: Ideal for various dust collector systems, our valve can be used in industries like cement production, pharmaceuticals, woodworking, metalworking, and more.
Easy Installation and Maintenance: The valve's design allows for quick and hassle-free installation, and its minimal maintenance requirements ensure uninterrupted operation.
Positioning: Mount the valve at a right angle to the tank or manifold, ensuring the pulse jet is directed towards the filter bag or cartridge.
Connection: Connect the inlet port to the compressed air supply line and the outlet port to the blow tube or pipe leading to the filter.
Sealing: Ensure all connections are securely sealed to prevent air leaks. Use appropriate sealing materials like Teflon tape or thread sealant.
Electrical Wiring: Connect the valve to the control system using the solenoid connections. Ensure the voltage and power ratings match the system specifications.
Testing: Check for proper alignment and secure all fittings. Test the system for leaks and ensure the valve operates correctly when actuated.
In Xingyu, you can find satisfactory products, please feel free to contact us! Xingyu will provide you with professional consulting and guidance!
Product Details
| Model | RMF-Z-20 | RMF-Z-25 |
| Working Pressure | 0.3 ~ 0.8 Mpa | |
| Ambient Temperature | -5 ~ 55 ℃ | |
| Relative Humidity | ＜85% | |
| Working Medium | Clean Air | |
| Voltage | AC110V/AC220V/DC24V | |
| Diaphragm Life | Over One Million Cycles | |
| Orifice | φ 20 | φ 25 |
| Connection Port | G3/4" | G1" |

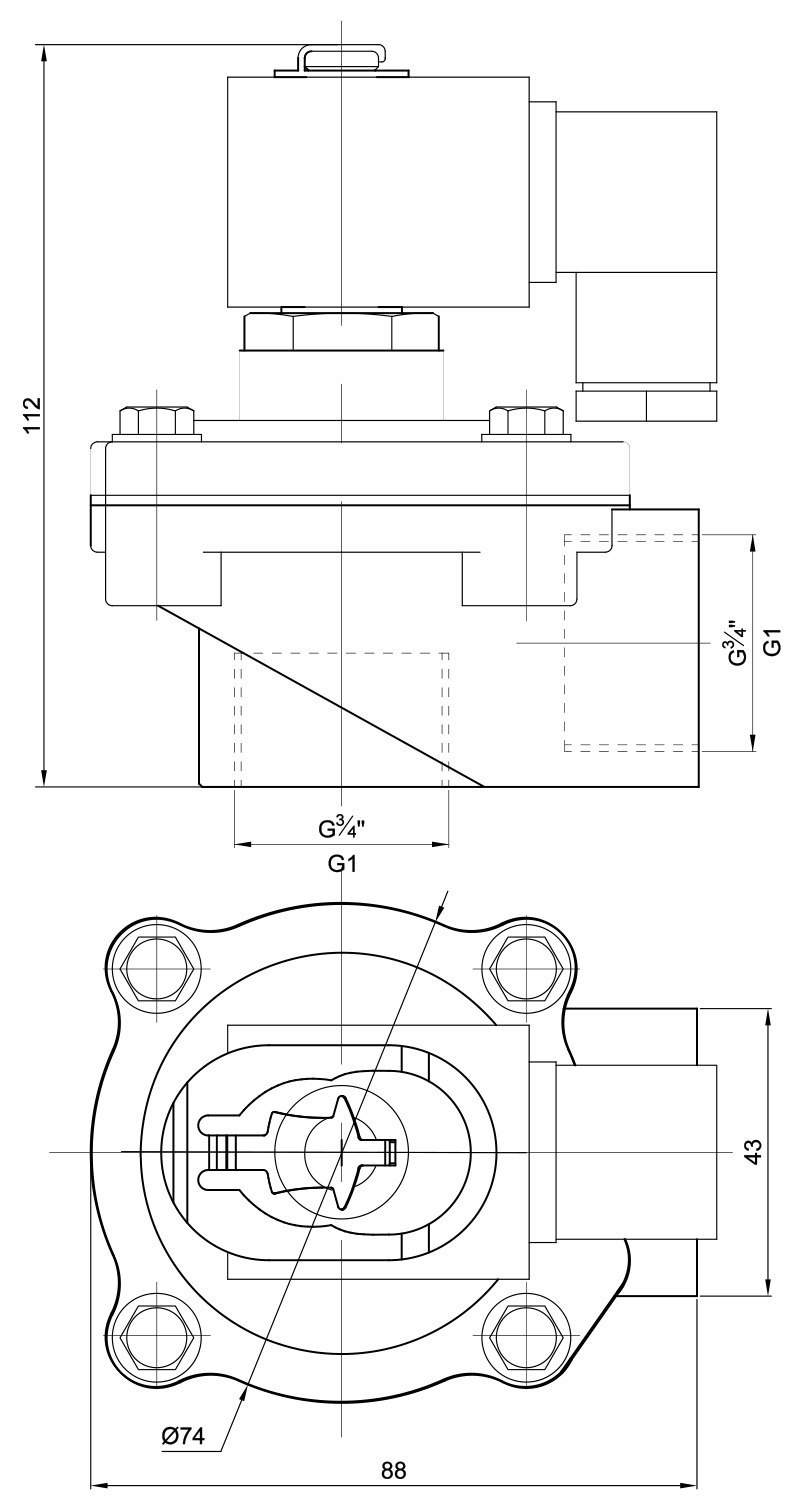

Overall Dimension
