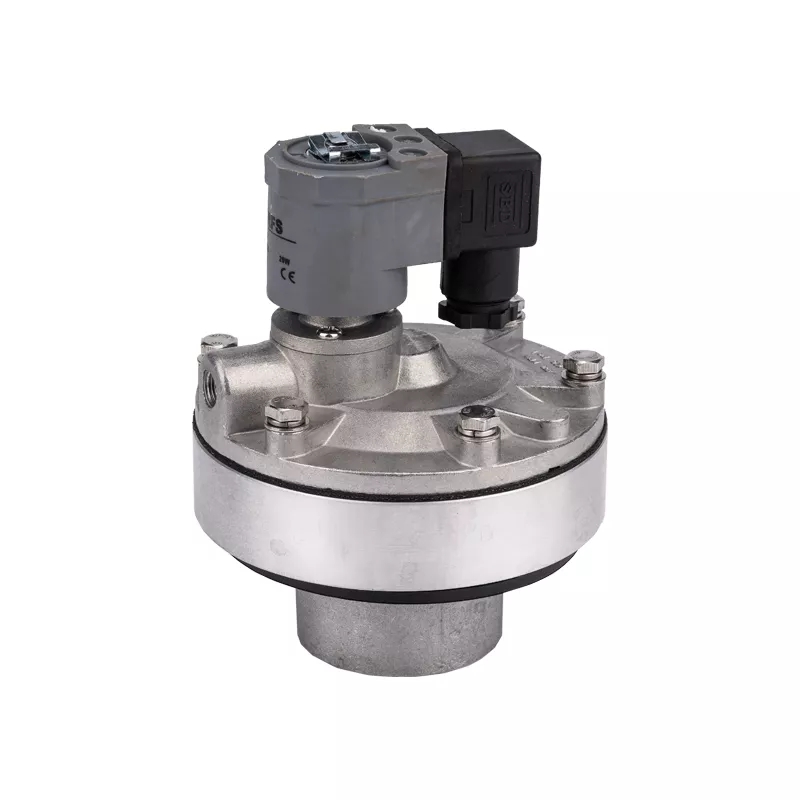

RMF-Y-40 Quick Mount Pulse Solenoid Valve

  • Exceptional Durability: Constructed with premium materials, our pulse valve is built to last, ensuring long-term reliability and reducing the need for frequent replacements.

  • High-Performance Diaphragm: The valve features a specially designed diaphragm that ensures quick and effective opening and closing, providing efficient pulse cleaning.

  • Energy Efficient Operation: Our pulse valve is engineered to consume less air energy while delivering powerful cleaning pulses, making it a cost-effective solution for your systems.

  • Wide Range of Applications: Ideal for various dust collector systems, our valve can be used in industries like cement production, pharmaceuticals, woodworking, metalworking, and more.

  • Easy Installation and Maintenance: The valve's design allows for quick and hassle-free installation, and its minimal maintenance requirements ensure uninterrupted operation.



Dust Collect Valve Catalog

Product Details

ModelRMF-Y-40
Working Pressure0.3 ~ 0.8 Mpa
Ambient Temperature-5 ~ 55 ℃
Relative Humidity<85%
Working MediumClean Air
VoltageAC110V/AC220V/DC24V
Diaphragm LifeOver One Million Cycles
Orificeφ 45
Connection Portφ 50

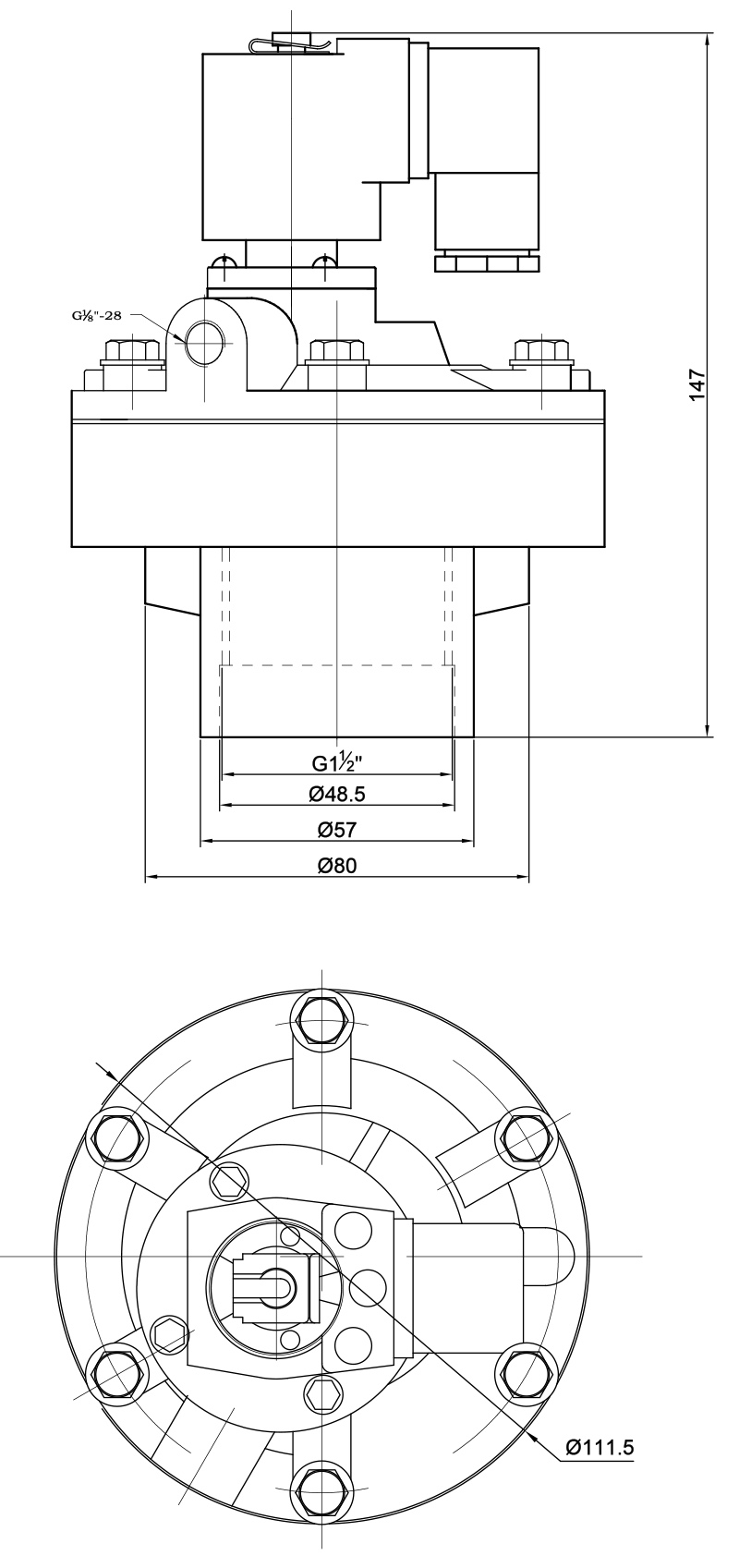

Overall Dimension


RMF-Y-40 Quick Mount Pulse Solenoid Valve
