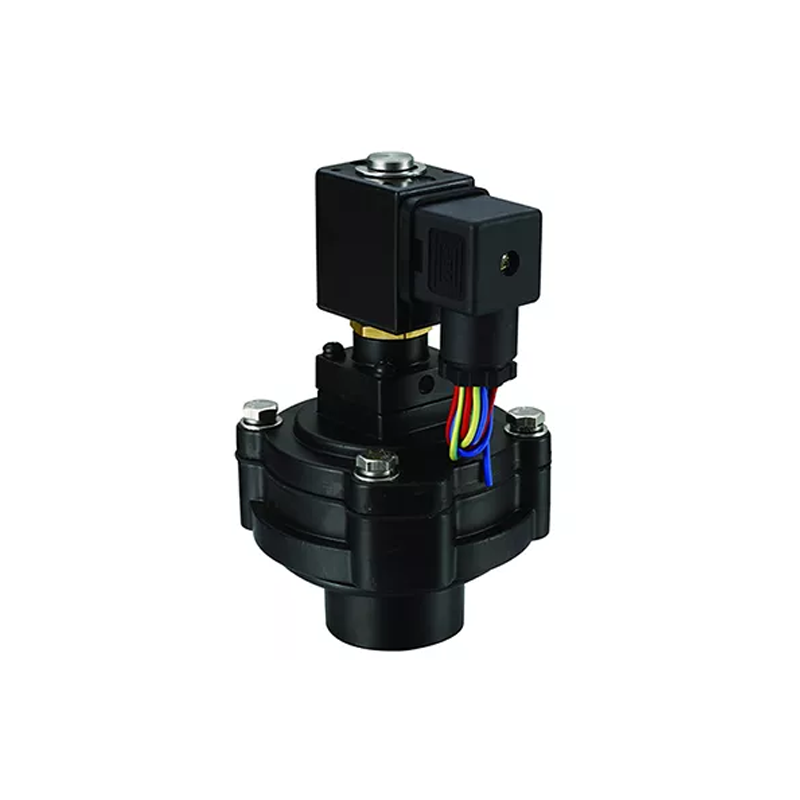

RMF-Y-25 Quick Mount Pulse Solenoid Valve

  • Purpose: Designed to release compressed air bursts to clean filter surfaces, enhancing filtration efficiency.

  • Variety: Available as diaphragm and solenoid types, each suited for specific systems.

  • Material: Constructed from durable materials like aluminum and stainless steel, ensuring longevity.

  • Efficiency: Characterized by rapid open/close actions, minimizing air use while maximizing cleaning.

  • Size and Configuration: Offered in various sizes to match different airflow needs.


Dust Collect Valve Catalog

Product Details

ModelRMF-Y-25
Working Pressure0.3 ~ 0.8 Mpa
Ambient Temperature-5 ~ 55 ℃
Relative Humidity<85%
Working MediumClean Air
VoltageAC110V/AC220V/DC24V
Diaphragm LifeOver One Million Cycles
Orificeφ 25
Connection Portφ 42

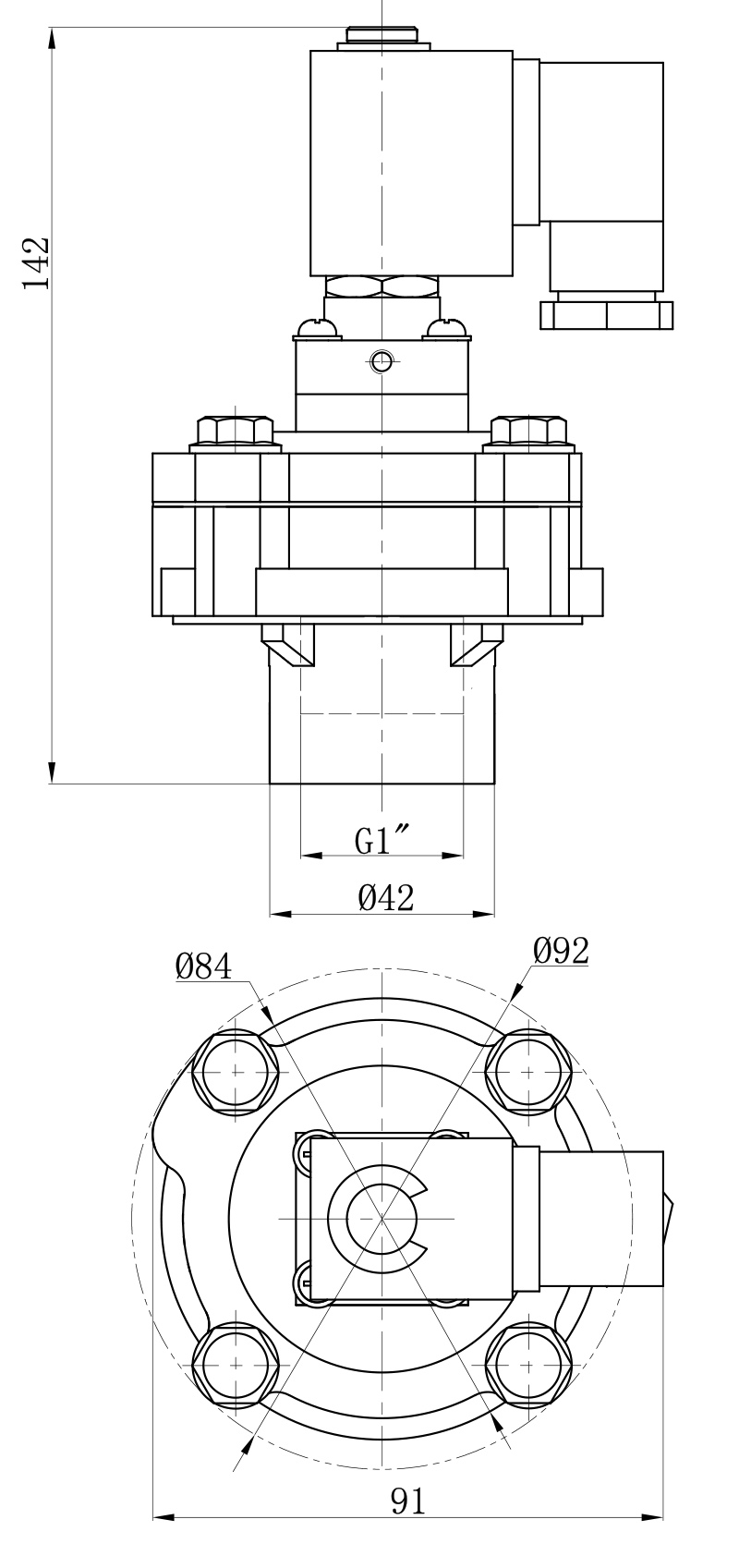

Overall Dimension


RMF-Y-25 Quick Mount Pulse Solenoid Valve
