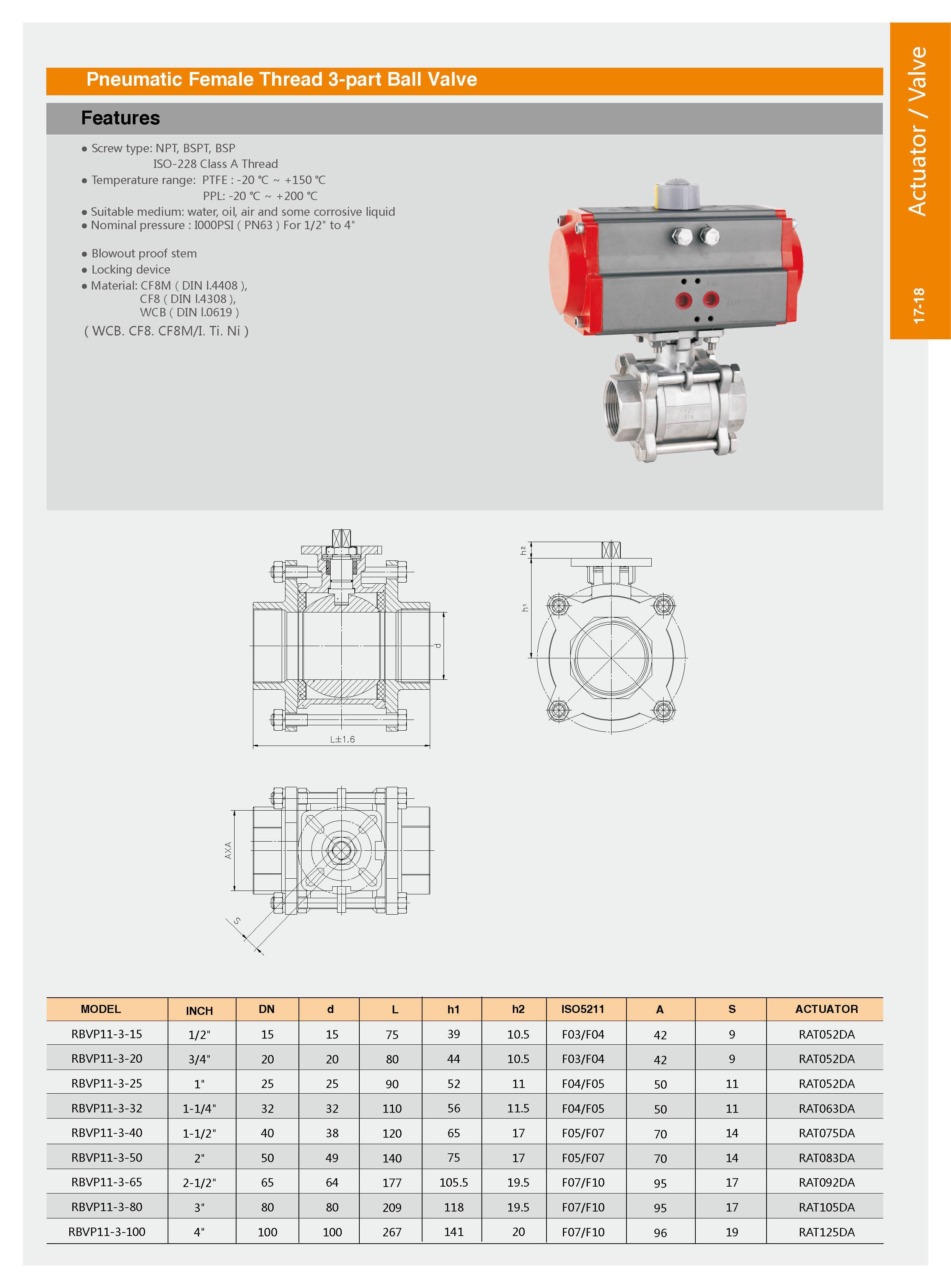

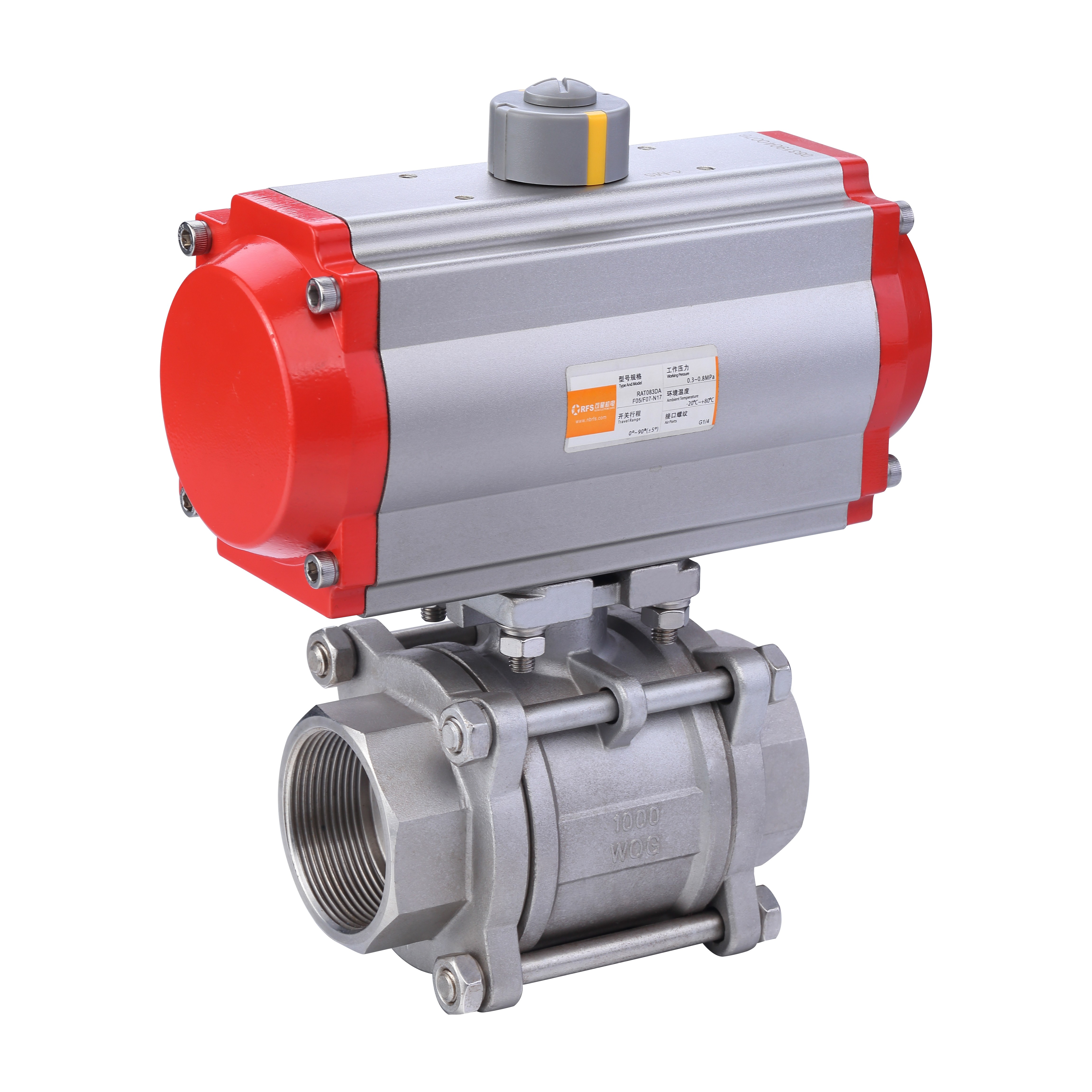

Pneumatic Female Thread 3-Part ball valve

Three-Piece Design: These valves typically consist of three main parts: two end caps and a body. This design makes them easy to disassemble for maintenance and repair without removing the entire valve from the pipeline.

Female Threaded Connections: The valve ends are female threaded, allowing for easy installation into existing male-threaded piping systems. This feature provides flexibility in connecting with various types of pipe materials and sizes.

Pneumatic Actuation: Equipped with a pneumatic actuator, these valves offer automated control, allowing for remote operation and integration into automated systems. The actuator can be either double-acting (air to open, air to close) or spring return (air to open, spring to close).

Precision Flow Control: The ball valve design enables precise control of flow, with minimal pressure drop when the valve is fully open. It's suitable for on/off control as well as throttling applications.

High Durability and Reliability: Constructed typically from robust materials like stainless steel, these valves can withstand harsh conditions and are suitable for a wide range of industrial applications.
