When setting up a new water supply or upgrading an existing one, it's crucial to make the right choices about the valves that will regulate water flow into the house. If manual control over the flow is desired, angle and ball valves are the key options to consider. Both are popular in plumbing, each offering unique advantages and disadvantages. Understanding the strengths and weaknesses of each type is essential for selecting the one that best suits your specific needs.
An angle valve is a device used to control the flow of gas or liquid through a pipeline. It is commonly used in both residential and commercial plumbing applications to regulate water flow within a system. Angle valves also find use in industrial settings, such as chemical processing facilities. Named for its 90° configuration, the angle valve is designed to fit into confined spaces. It operates by allowing or blocking the passage of liquid or gas through a triangular-shaped opening. The flow can be controlled by adjusting the size of the opening. The valve typically features three ports, two of which can be opened or closed, while the third port remains open to maintain continuous pressure. Unlike ball valves, angle valves are available in smaller sizes and are primarily used for liquid transfer. They offer precise flow rate regulation, making them ideal for applications requiring complete shutoff or quick flow rate adjustments, such as in hot water systems. However, due to their 90° orientation, angle valves require more space than ball valves, so if space is limited, a ball valve may be a better choice.

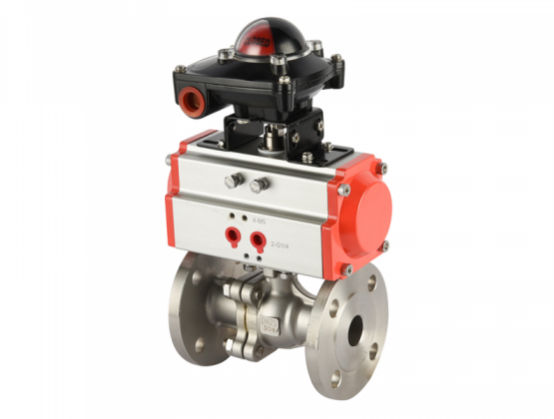

A ball valve is a device that regulates fluid flow using a spherical disk, commonly referred to as a "ball." This disk is held in place by a rod that passes through the valve's center. When the valve is opened, the ball rotates so that its hole aligns with the flow path, allowing fluid to pass through. Conversely, when the valve is closed, the ball rotates to block the opening, preventing fluid from passing. Ball valves are widely used in various applications, including oil pipelines, chemical processing facilities, and water and gas lines.
The valve's operation is controlled by a handle, typically resembling a lever or wheel, located on one side of the valve. Rotating the handle causes the internal ball to turn, either opening or closing the valve. The design of the ball valve allows for precise control of fluid flow; by partially opening the valve, the flow can be restricted, reducing the amount of fluid passing through. Ball valves are commonly used to control water flow in garden hoses, where adjusting the nozzle position can increase or decrease the water pressure.
When choosing between an angle valve and a ball valve, several key differences are worth considering:
- Ball Valve: Ball valves are more suited for installations where the system involves frequent left-hand turns. However, the abrupt bend in their design can create more friction, increasing the likelihood of sticking. They are generally more complex and require more maintenance but are preferred in situations where complete and quick shut-off is needed.
- Angle Valve: Angle valves are ideal for water lines situated near areas prone to damage, such as behind refrigerators or gas fireplaces. These valves are typically safer as they are often installed behind walls and out of reach. They are simpler in design, which makes them easier to install and maintain.
- Ball Valve: Suitable only for metal pipe connectors, including copper, steel, or PVC. When installing, it's crucial to remove the handle from the valve's threaded shaft and rotate it 180 degrees to shut off the flow.
- Angle Valve: Can be used with both PEX and copper tubing. Angle valves generally do not require gaskets due to their design, but gaskets can be added if necessary.
- Ball Valve: Installing ball valves can be more complex, especially in tight spaces. They also require more frequent maintenance. To replace or fix a ball valve, the handle is removed, and the valve is disassembled using a wrench.
- Angle Valve: Installation is usually simpler, making it a better choice for tight spaces, such as behind kitchen cabinets. Angle valves offer smooth radius outlets, which help prevent clogging and reduce stress on fittings. They are less likely to leak if properly installed and tightened—tightening should be done carefully to avoid overtightening, which can cause damage.
- Angle Valve: The smooth outlet design helps distribute wear evenly along the curve, extending the service life of the valve components. They are often safer around children as they prevent entrapment hazards.
- Ball Valve: While effective in providing a complete shut-off, ball valves carry the risk of damaging supply lines if mishandled, especially in areas where children are present.
When deciding between angle valves and ball valves, consider the following ten factors:
1. Performance Requirements: Determine if the application involves transporting corrosive media, such as oil or sewage, or if it operates at high temperatures or pressures. If so, you may need a valve designed for oil and gas or one made from a material other than steel.
2. Maximum Flow Rate (Qmax): Identify the maximum flow rate through the valve under normal temperature and pressure conditions at the inlet. Ensure the chosen valve can handle this flow rate effectively.
3. Exposure Conditions: Consider the expected service life of the valve, taking into account factors like vibration, abrasive media, high shock loads, and heat cycles. These conditions can impact the valve's longevity and influence your choice.
4. Port Configuration: The port configuration may dictate whether to choose an angle or a ball valve. For example, space constraints might necessitate using a ball valve if there's insufficient room for an angle valve. Additionally, certain pipe connections may not accommodate either type, limiting your options.
5. Installation Cost: Installation costs vary depending on the valve type and supplier. Generally, angle valves are less expensive since they don't require additional parts like seats, packing nuts, or packing strips. However, ball valves often have a longer lifespan due to their design, which can withstand higher pressure surges. They are also easier to open, as their packing nuts don't require tools like hex keys. Ball valves' smaller external dimensions make them easier to install across various pipe sizes without the need for reducing flanges or bushings.
6. Cleaning Cost: The cleaning cost depends on the valve type. Angle valves, with no protruding parts, are less likely to accumulate dirt and debris. In contrast, ball valves may collect dirt and liquids over time, potentially causing difficulties in opening and closing.
7. Operating Cost: The frequency of operation of each type of valve over the course of a day, week, or month, for example, will determine the operating costs. The primary distinction lies in the fact that an angle valve can be closed without needing to be rotated off its seat, hence reducing internal component wear and tear. Angle valves, on the other hand, only partially close after the operation, whereas ball valves are intended to completely stop the fluid flow.
While research has shown that angle valves can fail due to cracking where the valve seats meet, caused by stress concentration, leading to leaks even when not under pressure, some believe that angle valves have fewer failure points than ball valves. However, ball valves are more susceptible to corrosion and leaks due to sediment accumulation on the valve seats and passageways. Both angle valves and ball valves are essential components in industrial settings across various industries and applications. Therefore, it is crucial to understand the limitations of each type before deciding which is best for a given application.
Angle and ball valves are among the most commonly used industrial valves, each offering distinct advantages and drawbacks. Choosing the right valve for your specific application is crucial. Contact us today to learn more about industrial valves and receive expert guidance on selecting the best valve for your needs.
