Solenoid valves and air pilot valves are indispensable components in pneumatic and hydraulic systems, playing critical roles in controlling compressed air across a wide range of industrial applications. This article explores the functionality, benefits, and limitations of these two valve types.
Solenoid valves and air pilot valves each bring unique advantages and features to pneumatic systems.

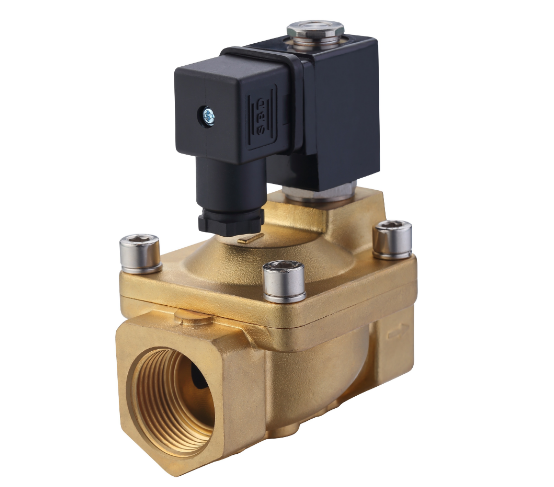

Operated by an electric current, solenoid valves enable rapid on/off control of fluid flow, making them ideal for applications requiring quick actuation and simplified operation. Their compact design and low power consumption enhance their versatility, allowing them to excel in diverse pneumatic tasks.
Utilizing compressed air for operation, air pilot valves are designed to control larger pneumatic devices. They offer proportional control and precise positioning capabilities, making them invaluable for applications requiring fine-tuned control and remote operation.
Together, these valves provide reliable fluid control and are essential for enabling efficient automation in various industrial processes.
Solenoid valves are essential components in pneumatic systems, offering notable benefits that make them highly versatile and widely used.
- Fast Response Time: Solenoid valves enable rapid opening and closing, ensuring quick actuation and responsiveness in pneumatic systems.
- Simple Operation: They provide binary on/off control via electrical signals, simplifying system operation and control.
- Compact Design: As highlighted by mdpi.com, solenoid valves are typically compact and lightweight, making them easy to install even in tight spaces.
- Versatility: These valves are compatible with various fluids and pressures, making them suitable for tasks such as fluid regulation, shut-off, and diversion.
- Low Power Consumption: Solenoid valves generally consume minimal electrical energy, enhancing the overall energy efficiency of pneumatic systems.
- Limited Flow Control: Solenoid valves operate in a binary manner, making them less suitable for applications requiring precise adjustment of fluid flow rates.
- Susceptibility to Contaminants: Dirt, debris, or other contaminants in the fluid can clog or damage the valve mechanism, potentially reducing performance and reliability.
- Potential for Coil Burnout: Prolonged or frequent energization of the solenoid coil can lead to overheating and eventual burnout, requiring replacement and causing downtime.
- Noise Generation: Solenoid valves may produce operational noise, which can be problematic in noise-sensitive environments.
- Cost: While they offer significant benefits, solenoid valves can be relatively expensive, depending on the specific features and requirements of the application.
Air pilot valves are critical components in pneumatic systems, offering significant benefits that make them indispensable for precise control and automation.
- Proportional Control: Air pilot valves provide precise control over larger pneumatic devices, enabling accurate positioning and fine adjustments.
- Remote Control: These valves facilitate remote operation by using compressed air to transmit signals over distances, offering flexibility in system design.
- Versatility: Compatible with a variety of actuators and systems, air pilot valves are widely used in industrial automation, robotics, and machinery control.
- Safety: Commonly employed in safety-critical applications, they deliver reliable control essential for maintaining system integrity and operational safety.
- Energy Efficiency: Air pilot valves rely primarily on compressed air for operation, consuming minimal electrical energy and contributing to overall system efficiency.
- Complexity: Their design and operation are more intricate compared to solenoid valves, often requiring additional components, which can complicate installation and maintenance.
- Response Time: Although they offer proportional control, their response time is generally slower than that of solenoid valves, limiting their use in applications requiring rapid actuation.
- Cost: Air pilot valves can be more expensive, especially in systems that require multiple units or advanced features, increasing overall project costs.
- Maintenance Requirements: Due to their complexity and additional components, air pilot valves often demand more frequent inspection and servicing to ensure consistent performance.
- Size and Weight: These valves are typically larger and heavier than solenoid valves, posing challenges for applications with strict space or weight limitations.
When comparing solenoid valves and air pilot valves in pneumatic systems, key differences emerge in their operation and typical applications.
- Solenoid Valves: Operated by electrical signals, solenoid valves use a magnetic coil to move a plunger, regulating the flow of fluid.
- Air Pilot Valves: These valves leverage compressed air to control larger pneumatic devices, with a smaller pilot valve directing airflow to actuate a larger valve or actuator.
- Solenoid Valves:
- Ideal for tasks like fluid regulation, shut-off, and diversion.
- Favored for their compact design, fast response times, and ease of operation.
- Best suited for applications requiring quick actuation and straightforward control.
- Air Pilot Valves:
- Designed for proportional control and precise positioning of pneumatic actuators or valves.
- Commonly used in industrial automation, robotics, and machinery control.
- Essential for applications requiring fine-tuned adjustments and remote operation.
By understanding these distinctions, engineers can select the most appropriate valve type to meet the specific needs of their pneumatic systems.
Solenoid valves and air pilot valves each offer distinct advantages and limitations, making them suitable for different applications in pneumatic systems.
- Advantages: Solenoid valves are known for their fast response times, simple operation, and compact design. These features make them ideal for applications requiring quick actuation and straightforward control.
- Limitations: They may be prone to coil burnout with prolonged use and are less suitable for tasks requiring proportional control or fine-tuned adjustments.
- Advantages: Air pilot valves excel in proportional control, precise positioning, and remote operation, making them indispensable in applications like industrial automation and robotics.
- Limitations: Their complexity and higher cost compared to solenoid valves may be a disadvantage in simpler systems.
In some cases, engineers may prefer solenoid valves due to the following reasons:
- Simplicity and Ease of Installation: Solenoid valves require only an electrical connection for actuation, making installation and operation more straightforward than air pilot valves.
- Cost-Effectiveness: They are more economical, particularly for applications that do not require advanced features like proportional control.
- Fast Response Time: With their rapid actuation, solenoid valves are well-suited for tasks where speed is critical.
Choosing the right valve for your pneumatic system requires a clear understanding of the unique features and capabilities of solenoid valves and air pilot valves. Each valve type offers distinct advantages and limitations, making it essential to assess your specific application needs.
By carefully weighing the pros and cons of solenoid and air pilot valves, you can make an informed decision that aligns with your operational goals and system requirements.
If you need professional guidance or specialized expertise in selecting or implementing valves, Xingyu is a trusted and reliable partner ready to support your needs.
