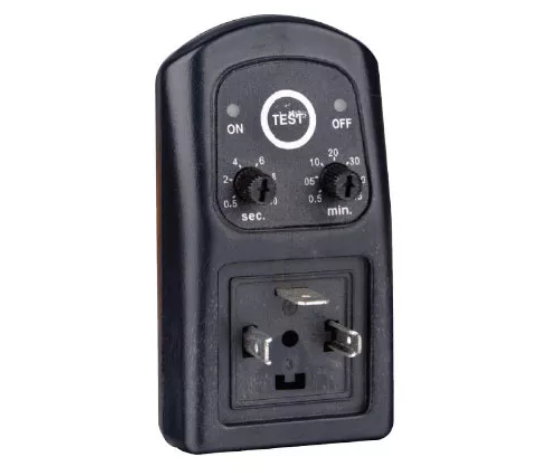

A solenoid valve timer allows for automating the valve's opening and closing intervals. The integrated electronic timer circuit is a simple and cost-effective method of automating control over the flow of liquids or gasses. This article explores the features of solenoid valves with timers, their working, installation, and applications.
Integrating a solenoid valve with a timer helps automate the valve's opening and closing intervals. The timer allows for the programming of specific intervals during which the valve will remain on or off. For instance, the timer can open a solenoid valve for ten seconds and then turn it off. This is ideal for remote locations with limited human access, like a condensate drain valve.
The main features of a solenoid valve with an automatic timer are:
- Precision control: The timer circuit allows for precise automated control of the valve's opening and closing, ensuring fluid flows exactly when and for how long it's needed.
- Flexibility: The timer circuit can be programmed for different timing intervals, making solenoid valves with timers adaptable to various applications. Also, the timers can be controlled in various ways, including manual or programmable logic controller (PLC).
Ensure the timer-integrated solenoid valve is installed in a dry and well-ventilated environment. In the case of a moist environment, it is crucial to prevent any moisture from entering the coil or device. Take adequate precautions during installation to ensure safety and prevent the risk of electric shock, burns, or other injuries. Additionally, keep the device away from flammable materials.
Install only when the system is completely disconnected from the electrical supply, cooled down, and depressurized.
Always turn off the power supply before installing the timer to eliminate the possibility of electric shock and accidental device activation.
After completing the installation, carry out commissioning procedures. This involves testing the valve's functionality, performance, and safety features, such as leakage rates, response times, and pressure ratings.
The operation of a solenoid valve timer involves several key components:
1. Timer Module: This is the brain of the system, allowing users to set specific time intervals for the valve's operation. The timer can be mechanical or digital, with various settings for on/off cycles.
2. Power Supply: The timer and solenoid valve require a power source to function. This can be a standard electrical outlet or a battery, depending on the application.
3. Control Circuit: The timer sends signals to the solenoid valve, instructing it when to open or close based on the pre-set time intervals.
When the timer is activated, it begins counting down the set time. Once the timer reaches the designated interval, it sends an electrical signal to the solenoid valve. This signal energizes the coil, creating a magnetic field that moves the plunger, opening the valve. After the set duration, the timer sends another signal to de-energize the coil, closing the valve. This cycle can be repeated as needed, allowing for automated control over fluid flow.
Installing a solenoid valve timer is a straightforward process, but it requires careful attention to detail to ensure proper functionality. Here’s a step-by-step guide:
1. Select the Right Components: Choose a solenoid valve and timer that are compatible with each other and suitable for your specific application.
2. Prepare the Installation Site: Ensure that the area is clean and free from debris. If necessary, shut off the power supply to avoid any electrical hazards.
3. Mount the Timer: Secure the timer module to a wall or panel using screws or brackets. Ensure it is easily accessible for programming.
4. Connect the Wiring: Follow the manufacturer’s instructions to connect the timer to the solenoid valve and the power supply. Use appropriate wire gauges and connectors to ensure a secure connection.
5. Test the System: Once everything is connected, turn on the power supply and test the timer and solenoid valve. Adjust the timer settings as needed to achieve the desired operation.
Timed solenoid valves are commonly used in industrial applications where precise control of fluid flow is essential. Here are a few examples:
Air dryers: Solenoid valves with digital timers (infinite on-off) can be used in compressed air systems to control air flow and ensure the air dryer is functioning properly. The valve can be set to open and close at specific intervals, allowing air to flow through the dryer and be dried before it reaches downstream equipment.
Shower timers: Solenoid valves with timers can be used in shower systems to limit the time a shower can take. The valve can be set to open and allow water to flow for a while before automatically shutting off. A digital timer with a single on-off cycle would be suitable for this application. The solenoid valve needs to be turned on for a specific amount of time and then shut off automatically to limit the amount of time the shower can take.
Condensate drains: Solenoid valves with digital timers (infinite on-off) can be used in air compressor systems to drain the condensate that collects at the bottom of the tank. The valve can be set to open and close at specific intervals, allowing the condensate to be drained without disrupting the compressed air system, and this process continues indefinitely.
Lubrication systems: Solenoid valves with timers can be used in automated lubrication systems to control lubricant flow to various parts of a machine. Using a digital timer with a single on-off cycle would allow the solenoid valve to be turned on for a predetermined amount of time, say 5 or 10 seconds, and then shut off automatically.
