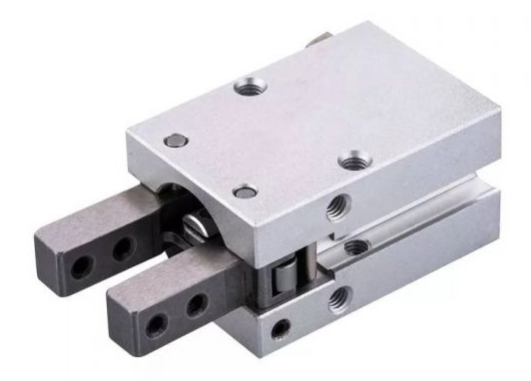

When the air is supplied, the gripper jaws will close on an object and firmly hold the object while some operation is performed, and when the air direction is changed, the gripper will release the object. Typical uses are to change orientation or to move an object as in a pick-n-place operation.
Cylinders are the driving force behind pneumatic grippers, converting compressed air energy into mechanical motion. They provide the linear or rotary motion needed to operate the gripper jaws.
Rotary actuators allow rotational movement, expanding the range of motion for pneumatic grippers. They are essential for tasks involving angular positioning or rotation.
Grippers are the end-of-arm tooling in pneumatic systems, directly interacting with objects. Their design varies based on the application, from delicate handling to robust gripping.
A pneumatic rotary actuator uses compressed air as its power source, making it ideal for applications like remote valve control. Clean, dry air can be provided by a central compressed air system or, in compressed gas setups, directly from the process gas. The exhaust gas is either vented into the atmosphere or routed into a downstream, lower-pressure process pipeline. These actuators are commonly used to automate and remotely operate quarter-turn or multi-turn valves, such as ball or butterfly valves.
A pneumatic rotary actuator consists of one or more air chambers with a piston or a bellows diaphragm. Depending on the design, the air pressure forces the piston or the diaphragm to move creating linear or rotary motion. If the generated motion is linear, it is internally converted to rotational motion. Pneumatic rotary actuators are known for their durability, compact size, and ability to deliver high force, making them suitable for use in hazardous environments.
While rotary valves are typically driven by rotary actuators, some designs employ pneumatic cylinders to create linear motion, which is then converted into torque using pivot arms or bearings. However, opting for pneumatic rotary actuators in such applications can streamline the design and enhance service life. Being self-contained, these actuators have their components protected from contaminants and harsh environments, reducing the likelihood of maintenance throughout their operational lifespan.
The most common type, two-jaw grippers, operate with a linear motion to grip objects securely. They are ideal for tasks requiring precision, such as picking up parts from a conveyor.
Three-jaw grippers provide a radial grip, making them suitable for cylindrical or round objects. Their balanced grip ensures higher stability during operations.
These grippers feature jaws that pivot around a fixed point, allowing them to grip objects at varying angles. They are useful for applications requiring flexibility in motion.
Parallel grippers have jaws that move in a straight line, parallel to each other. Their design ensures uniform force distribution, making them suitable for delicate or uniform-shaped objects.
Pneumatic grippers operate at high speeds, enabling rapid pick-and-place cycles. Their efficiency improves overall productivity in manufacturing processes.
Compared to other gripping technologies, pneumatic grippers are affordable to install and maintain, offering an economical solution for automation needs.
With a wide range of sizes, types, and configurations, pneumatic grippers can be customized for diverse applications, from electronics assembly to automotive production.
The straightforward design and functionality of pneumatic systems make them easy to implement and maintain, reducing downtime and operational complexity.
Pneumatic rotating grippers are essential components in robotic arms, enabling them to perform tasks such as picking, placing, and assembling parts with precision.
From moving objects on conveyor belts to stacking items in storage, pneumatic grippers streamline material handling processes across industries.
In packaging lines, grippers ensure efficient handling of products, from placing items into containers to sealing packages.
In industries like electronics and automotive manufacturing, pneumatic grippers are used to position and assemble components with consistency and accuracy.
Select a gripper with sufficient force to handle the weight of your objects without compromising efficiency or safety.
The design of the jaws should match the shape and size of the objects being handled. Consider whether a parallel, angular, or custom jaw design is most suitable.
Evaluate the working conditions, such as temperature, humidity, and potential exposure to dust or chemicals, to ensure the gripper's durability and reliability.
Ensure the pneumatic system can provide the required pressure for the gripper to operate effectively.
To maximize the lifespan and performance of pneumatic grippers:
- Regularly inspect components for wear and tear.
- Clean the jaws and cylinders to prevent debris buildup.
- Lubricate moving parts to reduce friction and enhance efficiency.
- Monitor air pressure levels to maintain consistent performance.
Pneumatic grippers, along with cylinders and rotary actuators, are the backbone of industrial automation. Their speed, versatility, and cost-effectiveness make them a preferred choice for industries ranging from manufacturing to logistics. By selecting the right type of gripper and maintaining it properly, businesses can enhance productivity and achieve seamless automation.
