Limit Box Switch
Limit Box Switch

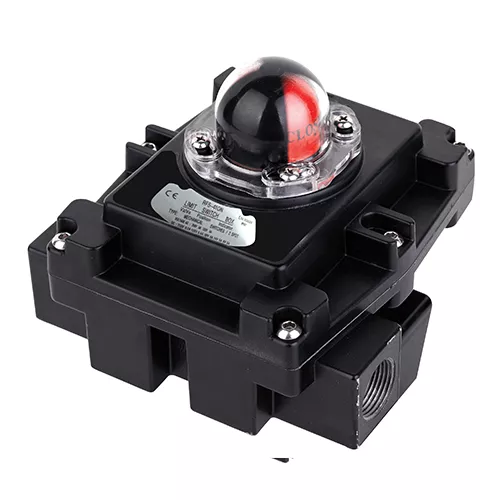

Explosion proof limit switch box RFS-410-EX grade is EXDII BT4 standard explosion proof limit switch box .Limit switch box with feedback thread is G3/4".actuator position indicator suit for actuator RAT270-RAT400.Explosion proof switch box RFS-410-EX is mechanical type.
| Model | RFS-210N/RFS-310N | RFS-410-EX |
| Explosion proof | IP67 | EXDII BT4 |
| Ambient Temp | -25℃ - 85℃ | |
| Cable Entry | G1/2" | G3/4" |
| Terminal stripe | 8 | |
| Position indicator | 0℃ - 90℃ | |
| switches | mechanical type | |
| Potentiometer | 1 KΩ | |
| current | 4-20mA | |
