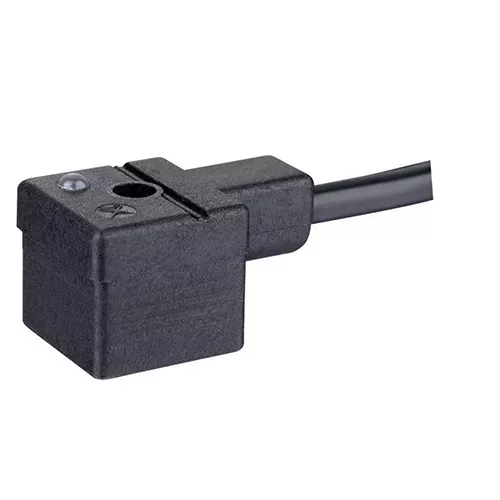

SB218 Connector

SB218 Connector

  • DIN43650A with cable

  • black connector with cable

  • SBD connector with 1.5 meters cable

  • DIN43650A connector

  • 4 pins black connector with cable

  • IP65


Inquire Now

Product Details

Distance18mm
Form2+2GND
Protection classIP65(IEC 60529 Situation of IEC)
Working voltageAC250V DC300V
Nomical current10A
Contact Resistance≤5mΩ
IndicatorAC:Light open is"ON" ,Light out is"OFF"
DC:Green light for a positive open,the red light for the reverse-open
Max Conductor Section3x0.75mm2
Fixing ScrewM3x30

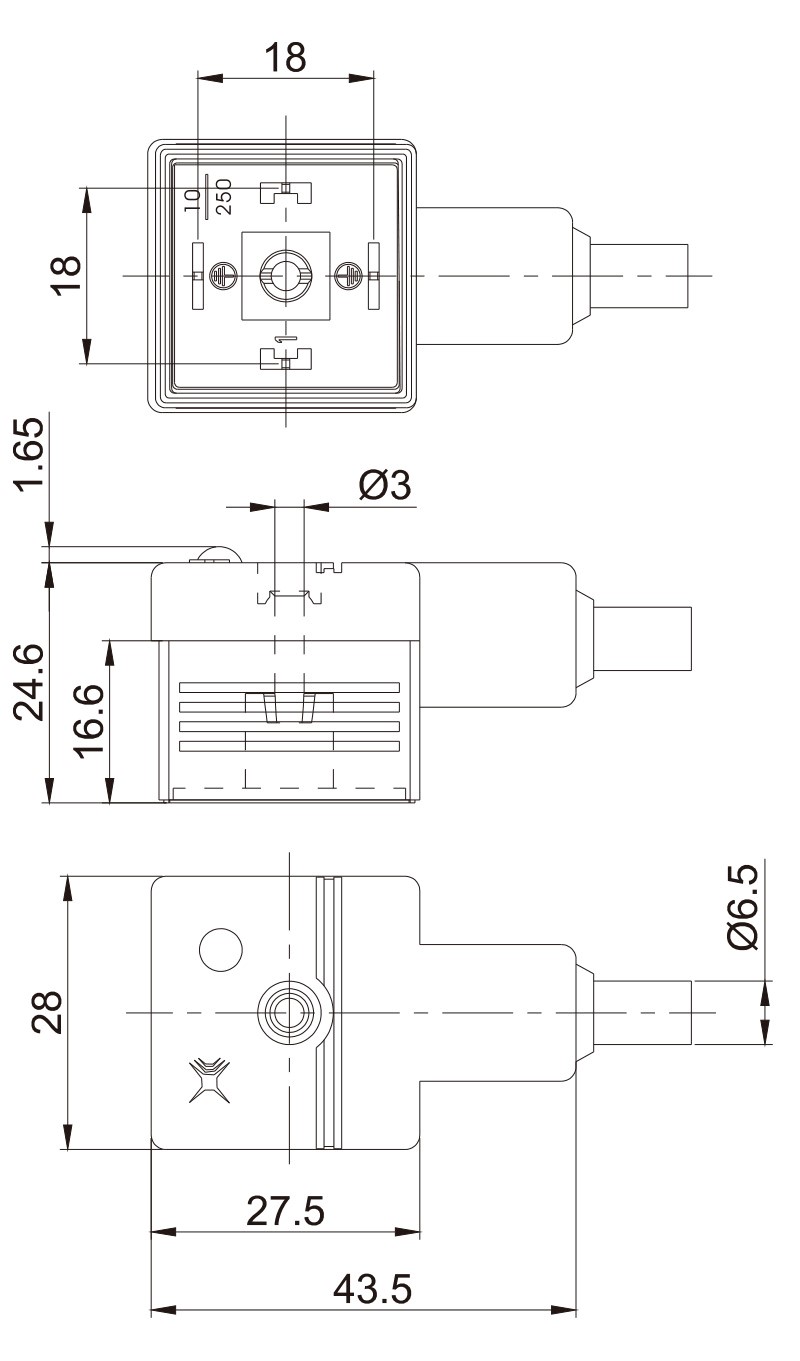

Overall Dimension

SB218 Connector
