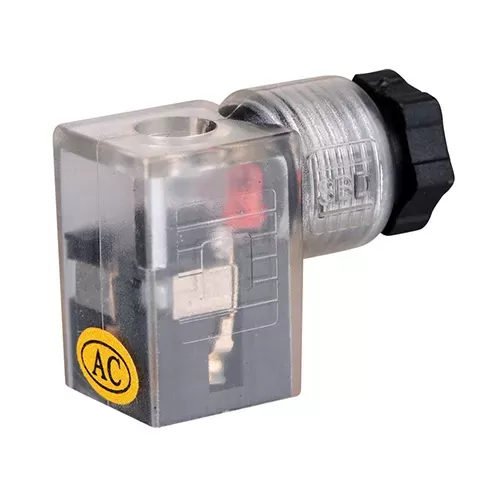

SB208 Connector DIN43650C

SB208 Connector DIN43650C

  • DIN43650C

  • DIN43650C connector

  • DIN43650C connector with LED

  • DIN43650C connector with 4 PINS

  • DIN43650C brown connector with LED

  • DIN43650C transparent connector with LED


Inquire Now Next Product

Product Details

Distance9.4mm
Form3+1GND
Protection classIP65(IEC 60529 Situation of IEC)
Working voltageAC250V DC300V
Nomical current10A
Contact Resistance≤5mΩ
Max Conductor Section3x0.75mm2
Fixing ScrewM3x25

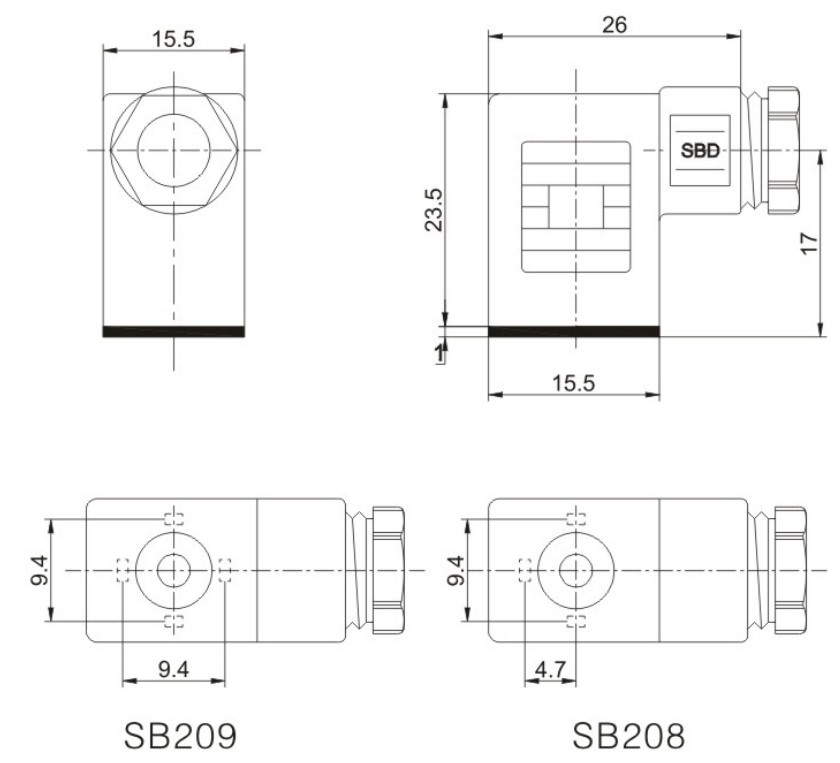

Overall Dimension

SB208 Connector DIN43650C
