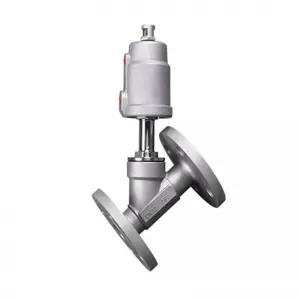

Angle Seat Valve
Angle Seat Valve
Durable Material: The aluminum head provides robustness and resistance to corrosion, making these valves suitable for harsh industrial environments.
Angle Seat Design: This design offers a high flow rate and is effective in minimizing fluid resistance, allowing for efficient flow control.
Pneumatic Actuation: These valves are typically pneumatically actuated, providing faster response times and allowing for remote and automated control in complex systems.
Excellent Sealing Performance: Angle seat valves usually have good sealing capabilities, which helps in preventing leaks and ensuring precise flow control, essential in many process industries.
High Temperature and Pressure Tolerance: The combination of aluminum construction and the angle seat design often allows these valves to operate effectively under high pressure and temperature conditions.
Aluminum Head Angle Seat Valve Datesheet
An Aluminum Head Angle Seat Valve is a type of angle seat valve with its valve body head made of aluminum. Angle seat valves are commonly used control valves designed for various industrial applications involving the control of liquids, gases, and steam. They find utility in flow control, pressure regulation, liquid handling, and process control, among others.
The aluminum head provides robustness and resistance to corrosion, making these valves suitable for harsh industrial environments.
This design offers a high flow rate and is effective in minimizing fluid resistance, allowing for efficient flow control.
These valves are typically pneumatically actuated, providing faster response times and allowing for remote and automated control in complex systems.
Angle seat valves usually have good sealing capabilities, which helps in preventing leaks and ensuring precise flow control, essential in many process industries.
The combination of aluminum construction and the angle seat design often allows these valves to operate effectively under high pressure and temperature conditions.
Looking for a one-stop solution for reliable SS Head Angle Seat Valve in Xingyu, please contact us for product consultation!
| Orifice | DN10-DN65 |
| Thread | G3/8"-G2 1/2" |
| Working type | single acting,double acting |
| Valve material | stainless steel 316 |
| Actuator material | Aluminium |
| Valve core seal | PTFE |
| Valve stem seal | PTFE/FKM |
| Applicable medium | water,liquid,neutral gas,oil water steam,weak acid or weak alkalis solution |
| Medium temperature | -10℃~180℃ |
| Environment temperature | -10℃~60℃ |
| Pattern | NC,NO |
| Viscidity | max.600mm 2/S |
| Installation | any position |
| Controlling medium | air or neutral gas |
| Controlling pressure range | 0.3~1Mpa |
| Liquid Working pressure | 0.3~1Mpa |

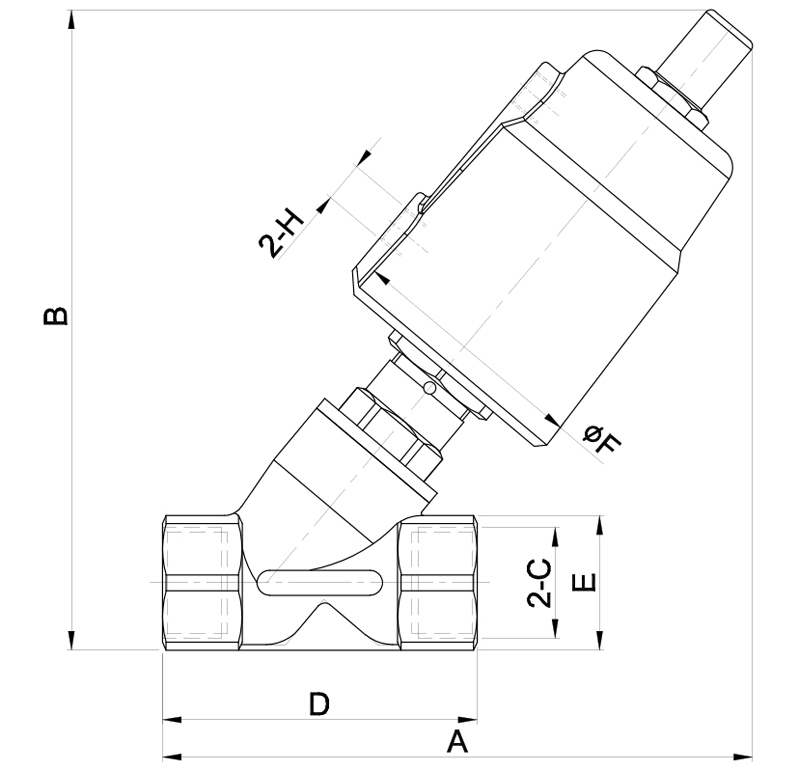

Overall Dimension
Product Details
| Model | Actuator size | A | B | C | D | E | F | H |
| RJQ2250-10 | 50 | 140 | 150 | G3/8 | 69 | 27 | 60.5 | G1/8 |
| RJQ2250-15 | 50 | 140 | 150 | G1/2 | 69 | 27 | 60.5 | G1/8 |
| RJQ2250-20 | 50 | 143 | 155 | G3/4 | 75.5 | 32 | 60.5 | G1/8 |
| RJQ2250-25 | 50 | 163.5 | 176 | G1 | 90 | 39 | 60.5 | G1/8 |
| RJQ2263-25 | 63 | 174.5 | 189.5 | G1 | 90 | 39 | 77 | G1/8 |
| RJQ2263-32 | 63 | 190.5 | 207.5 | G1-1/4 | 117 | 50 | 77 | G1/8 |
| RJQ2263-40 | 63 | 190.5 | 207.5 | G1-1/2 | 117 | 55 | 77 | G1/8 |
| RJQ2263-50 | 63 | 219.5 | 232.5 | G2 | 137 | 70 | 77 | G1/8 |
| RJQ2280-50 | 80 | 233 | 253 | G2 | 137 | 70 | 98 | G1/4 |
| RJQ2280-65 | 80 | 273 | 290 | G2-1/2 | 170 | 85 | 116 | G1/4 |
| RJQ22100-65 | 100 | 270 | 290.5 | G2-1/2 | 170 | 85 | 116 | G1/4 |
