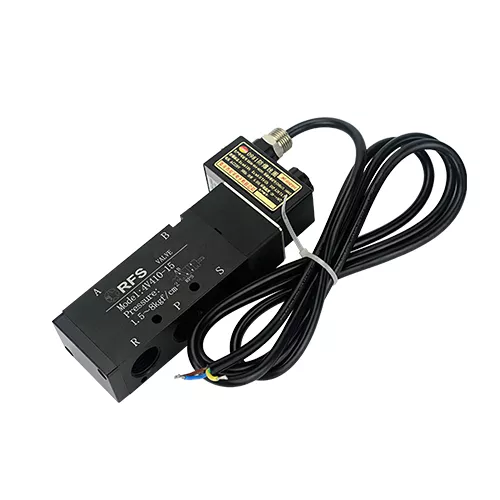

4V Valve
4V Valve
High Flow Rates: Designed to handle high flow rates, ensuring efficient operation in various applications.
Robust Construction: Durable build to withstand challenging industrial environments.
Double or Single Solenoid Operation: Options for either double solenoid for bistable operation or single solenoid for spring return functionality.
Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.
Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.
4V(3V) 400 Series Datesheet
Ordering Code
Parameter
| Mode | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 | |||||
| 4A410-15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A 430P-15 | ||||||
| Type | 5/2 | 5/3 | ||||||||
| Flow rate | 50mm2（Cv=2.79） | 30mm2（Cv=1.68） | ||||||||
| Model | 3V410-15 | 3V420-15 | 3A410-15 | 3AV420-15 | ||||||
| Type | 3/2 | |||||||||
| Flow rate | 50mm2（Cv=2.79） | |||||||||
| Connection ports | Inlet = Outlet = Exhaust = G1/2" | |||||||||
| Media | Clean air | |||||||||
| Working type | Pilot | |||||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||||
| Max. pressure | 1.2MPa | |||||||||
| Ambient temp | -5 ~ 50℃ | |||||||||
| Voltage tolerance | ±10% | |||||||||
| Power | AC:4.5VA DC:3W | |||||||||
| Insulation class Protection class | F class. IP65 | |||||||||
| Terminal | Flying Lead Or Din43650B PIN | |||||||||
| Frequency | 5 cycles/s | |||||||||
| Response time | 0.05s | |||||||||

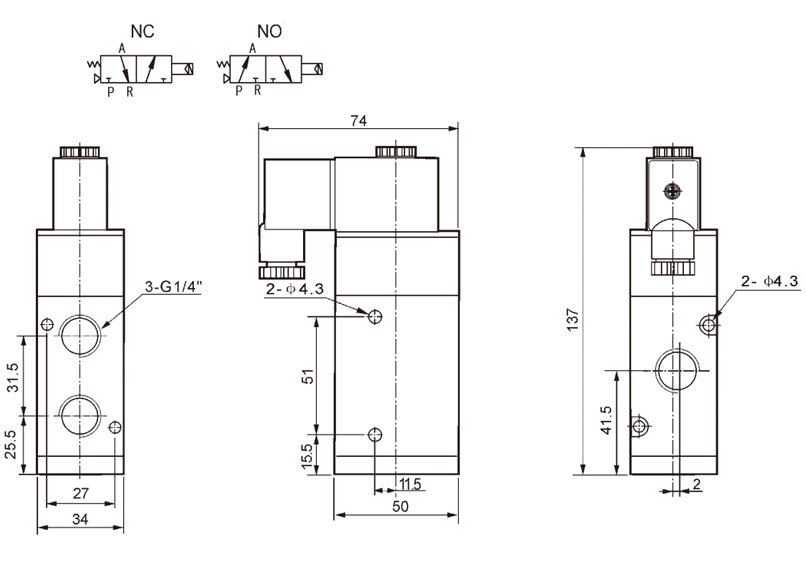

Overall Dimension
