4V Valve

4V Valve

Home - Products-Pneumatic and Automation Components-Directional Control Valve-4V Valve-3V310-08B

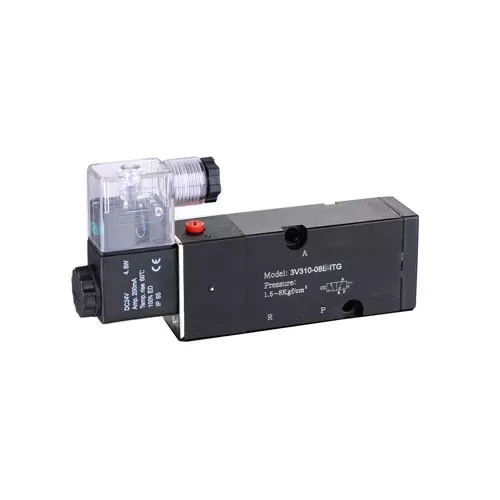

3V310-08B

  • High Flow Rates: Designed to handle high flow rates, ensuring efficient operation in various applications.

  • Robust Construction: Durable build to withstand challenging industrial environments.

  • Double or Single Solenoid Operation: Options for either double solenoid for bistable operation or single solenoid for spring return functionality.

  • Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.

  • Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.


4V(3V) 300 Series Datesheet

Parameter



Model4V310-08B3V310-08B
Type5/23/2
Flow rate25MM2(Cv=1.40)25MM2(Cv=1.40)
Connection portsInlet=outlet=exhaust=G1/4"Inlet=outlet=exhaust=G1/4"
MediaClean air
Working typepilot
Working pressure0.15 ~ 0.8 Mpa
Max.pressure1.2 Mpa
Ambient temp.- 5℃ ~ 50 ℃
Voltage tolerance± 10%
PowerAC 4.5V DC 3W
Insulation classClass F
protection classIP65
Terminalflying lead or DIN 43650B PIN
Frequency5 cycles/s
Response time0.05s
