4V Valve
4V Valve
High Flow Rates: Designed to handle high flow rates, ensuring efficient operation in various applications.
Robust Construction: Durable build to withstand challenging industrial environments.
Double or Single Solenoid Operation: Options for either double solenoid for bistable operation or single solenoid for spring return functionality.
Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.
Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.
4V(3V) 300 Series Datesheet

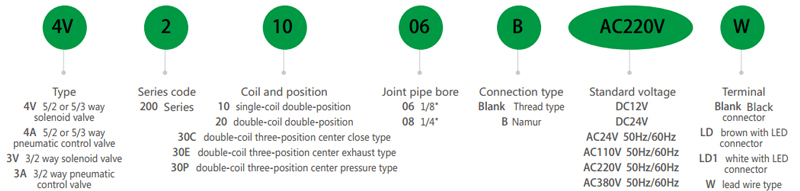

Ordering Code
Parameter
| Mode | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 | ||||||||
| 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | |||||||||
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||||||||||
| Flow rate | 25mm2（Cv=1.40） | 18mm2（Cv=1.00） | 30mm2（Cv=1.68） | 18mm2（CV=1.0） | ||||||||||||||
| Model | 3V310-08 | 3V320-08 | 3A310-08 | 3A320-08 | 3V310-10 | 3V320-10 | 3A310-10 | 3A320-10 | ||||||||||
| Type | 3/2 | 3/2 | ||||||||||||||||
| Flow rate | 25mm2（Cv=1.40） | 30mm2（Cv=1.68） | ||||||||||||||||
| Connection ports | Inlet = Outlet = Exhaust = G1/4" | Inlet = Outlet = G3/8" Exhaust = G1/4" | ||||||||||||||||
| Media | Clean air | |||||||||||||||||
| Working type | Pilot | |||||||||||||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||||||||||||
| Max. pressure | 1.2MPa | |||||||||||||||||
| Ambient temp | -5 ~ 50℃ | |||||||||||||||||
| Voltage tolerance | ±10% | |||||||||||||||||
| Power | AC:4.5VA DC:3W | |||||||||||||||||
| Insulation class Protection class | F class. IP65 | |||||||||||||||||
| Terminal | Flying Lead Or Din43650B PIN | |||||||||||||||||
| Frequency | 5 cycles/s | |||||||||||||||||
| Response time | 0.05s | |||||||||||||||||

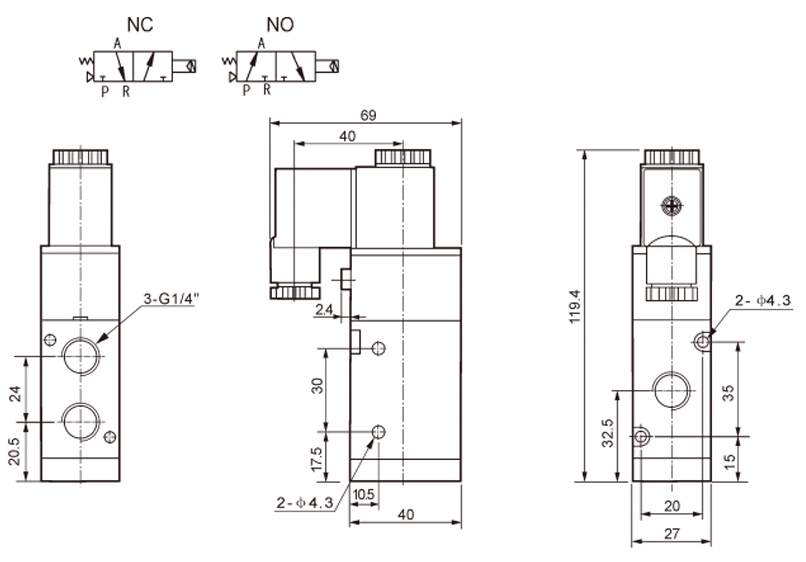

Overall Dimension
