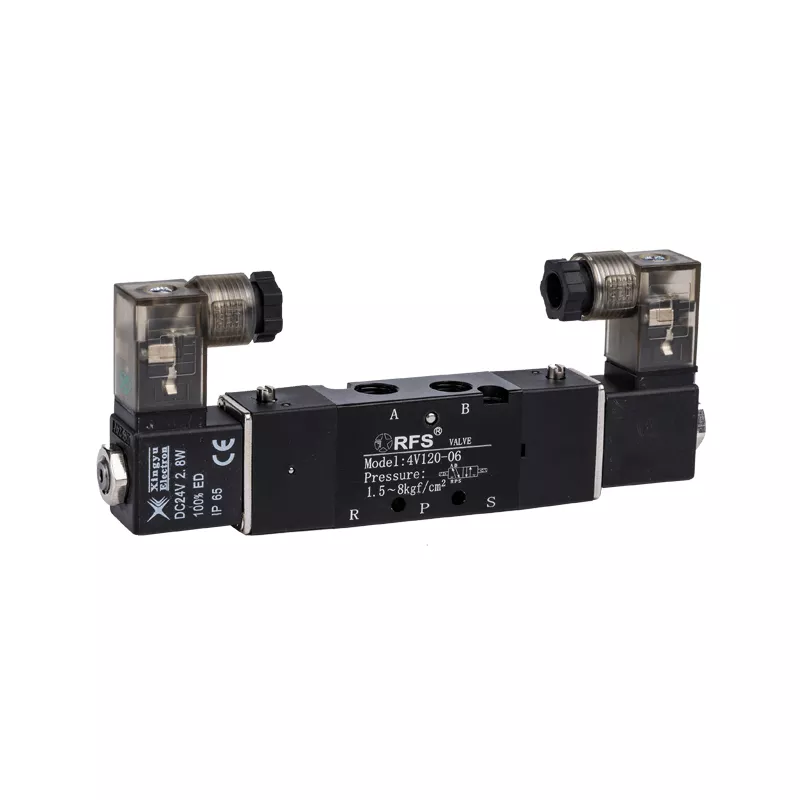

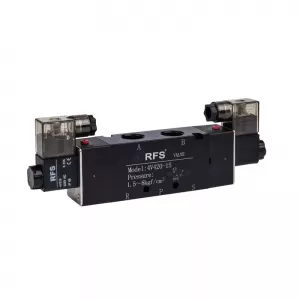

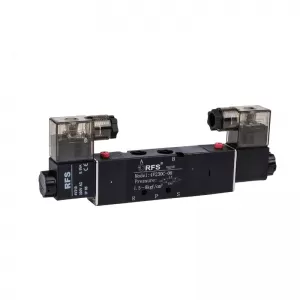

4V Valve
4V Valve
High Flow Rates: Designed to handle high flow rates, ensuring efficient operation in various applications.
Robust Construction: Durable build to withstand challenging industrial environments.

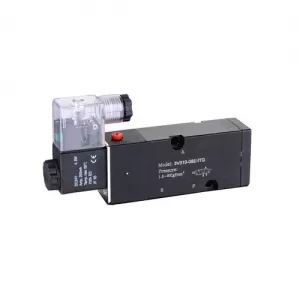

Double or Single Solenoid Operation: Options for either double solenoid for bistable operation or single solenoid for spring return functionality.
Multiple Mounting Options: Can be base mounted, sub-base mounted, or manifold mounted for flexibility in installation.
Manual Override Option: Often includes a manual override for troubleshooting or manual operation in case of power failure.
4V(3V) 100 Series Datesheet

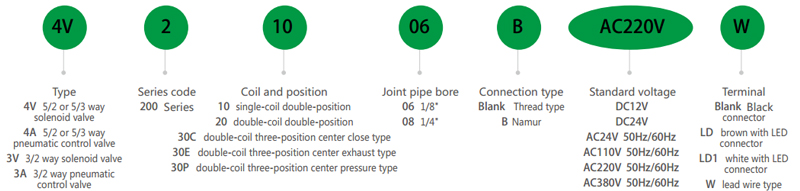

Ordering Code
Parameter
| Mode | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 | ||||||||
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |||||||||
| Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||||||||||
| Flow rate | 10mm2（Cv=0.56） | 7mm2（Cv=0.40） | 12mm2（Cv=0.67） | 9mm2（Cv=0.5） | ||||||||||||||
| Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 | ||||||||||
| Type | 3/2 | 3/2 | ||||||||||||||||
| Flow rate | 10mm2（Cv=0.56） | 12mm2（Cv=0.67） | ||||||||||||||||
| Connection ports | Inlet = Outlet = Exhaust = M5x0.8 | Inlet = Outlet = Exhaust = G1/8" | ||||||||||||||||
| Media | Clean air | |||||||||||||||||
| Working type | Pilot | |||||||||||||||||
| Working pressure | 0.15 ~ 0.8MPa | |||||||||||||||||
| Max. pressure | 1.2MPa | |||||||||||||||||
| Ambient temp | -5 ~ 50℃ | |||||||||||||||||
| Voltage tolerance | ±10% | |||||||||||||||||
| Power | AC:2.5VA DC:2.5W | |||||||||||||||||
| Insulation class Protection class | F class. IP65 | |||||||||||||||||
| Terminal | Flying Lead Or Din43650C PIN | |||||||||||||||||
| Frequency | 5 cycles/s | |||||||||||||||||
| Response time | 0.05s | |||||||||||||||||

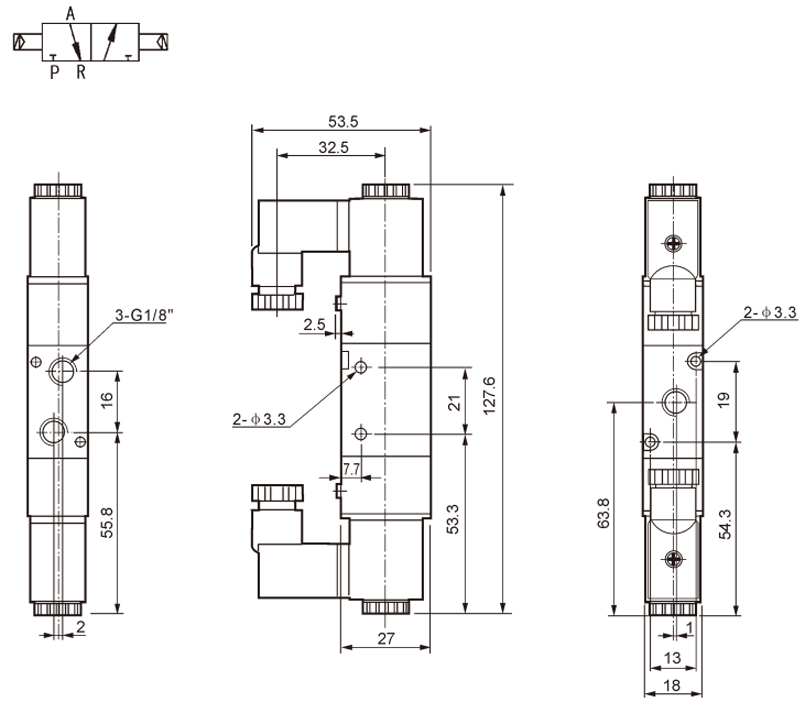

Overall Dimension
