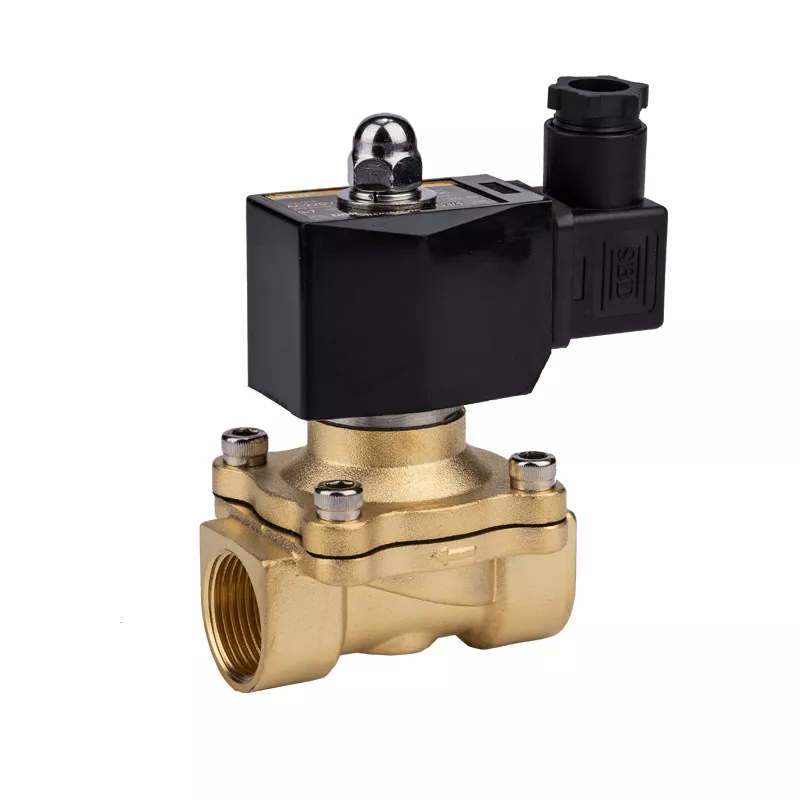

2W200 Solenoid Valve

2W200 Solenoid Valve

Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.

Standard Features: NC mode with a Brass body and NBR seal.

Thread: Uses standard G type.

Body Options: Available in SS304 or SS316 stainless steel.

Customizations: Viton seal for enhanced resistance; NPT threading available.

2W(S) Valve Datesheet

Inquire Now Next Product

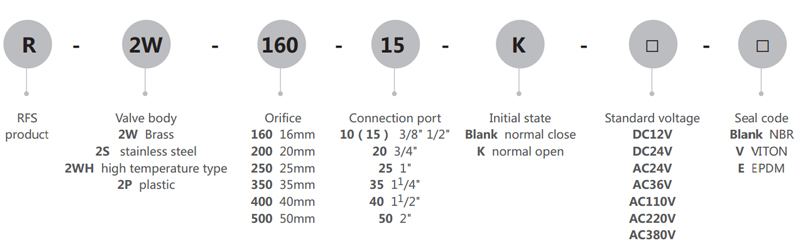

Ordering Code

2W200 Solenoid Valve


Parameter

Model2W200 / 2W200-K
MediaAir/ Water/ Oil
Working TypeDirect Action
PatternNormally Close / Normally Open
Orifice7.6mm
Cv Value7.6
Connection Ports3/4"
Fluid Viscosity＜20CST
Working PressureAir, Water, Gas 0~0.7 MPa
Max Pressure1.0 MPa
Working Temp.-5~80 ℃
Rated VoltageDC12-24V AC24V-380V ±10%
Valve Body MaterialBrass
Seal MaterialNBR / VITON / EPDM

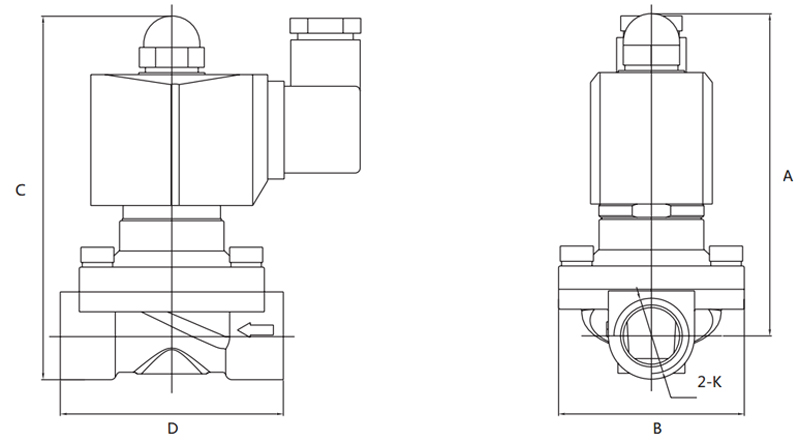

Overall Dimension

2W200 Solenoid Valve


ModeABCDK
2w160-10935610669G3/8"
2w160-15935610669G1/2"
2w200-201005511773G3/4"
2w250-251047812599G1"
2w350-3514193172124G11/4"
2w400-4014193172124G11/2"
2w500-50157124195172G2"
